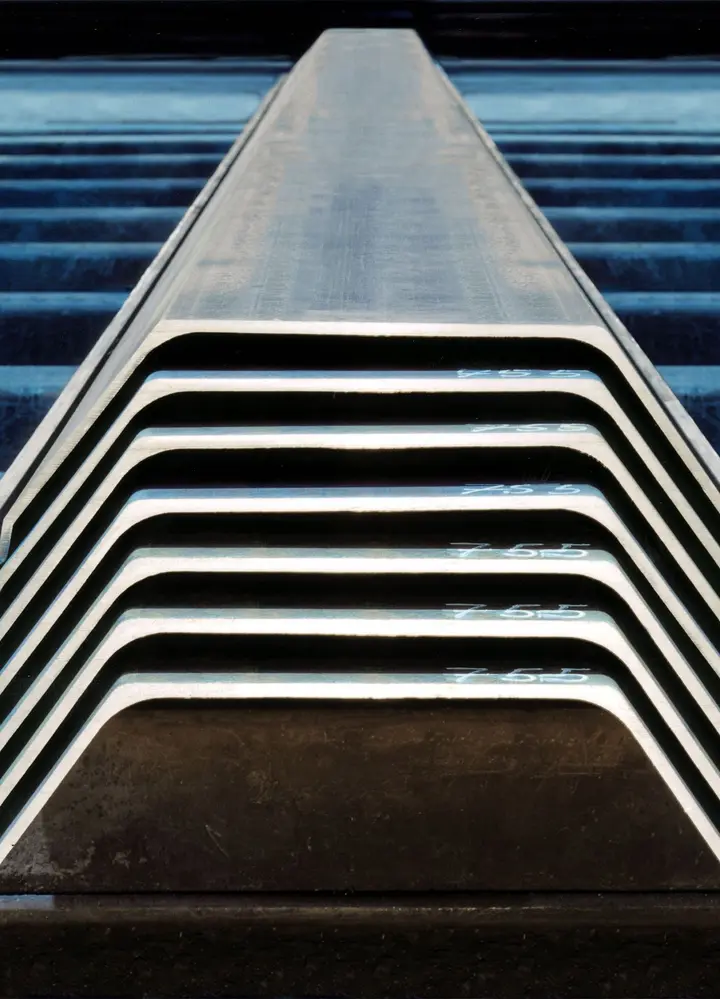

tkL 601 Steel Sheet Pile – The Economical, Lightweight Solution for Moderate Loads and Optimized Construction Costs
The tkL 601 steel sheet pile is the highly efficient entry-level model in the tkL series and was specifically developed for projects with moderate structural requirements. With a dead weight of just 77.2 kg/m² and a flexural moment of 744 cm³/m, this type of Larssen sheet pile proves that safe installation does not have to come at the expense of your budget. When extremely heavy profiles of the 604 class or higher are structurally oversized, this weight-optimized Larssen profile solves your economical challenges while offering full reliability—whether in traditional shoring or, for example, in sewer construction.
Good for your site
Good for your budget
Good for your planning
Our comprehensive service for your project
The tkL 601 steel sheet pile is the highly efficient entry-level model in the tkL series and was specifically developed for projects with moderate structural requirements. With a dead weight of just 77.2 kg/m² and a flexural moment of 744 cm³/m, this type of Larssen sheet pile proves that safe installation does not have to come at the expense of your budget. When extremely heavy profiles of the 604 class or higher are structurally oversized, this weight-optimized Larssen profile solves your economical challenges while offering full reliability—whether in traditional shoring or, for example, in sewer construction.
Good for your site
- High driving stability at minimal weight thanks to the U-shape, combined with perfectly balanced back thickness of 7.5 mm and web thickness of 6.4 mm.
- The proven interlocking geometry of the tkL sheet pile guarantees smooth interlocking and rapid driving without time-consuming jams.
- Optimal system compatibility within the entire 600-series tkL sheet pile family for maximum design flexibility in the field.
Good for your budget
- First-class material efficiency thanks to the minimum weight of 46.3 kg/m per individual sheet pile, which significantly lowers your freight and logistics costs.
- Extremely high reusability and durability, making this Larssen profile an ideal investment for temporary hire or excavation shoring.
- Maximum investment security thanks to reduced material usage per square meter of wall area at full preservation of the basic structural function.
Good for your planning
- Precisely calculable bearing capacity and full compliance with Eurocode 3 for legally sound and straightforward structural design.
- Full recyclability of the steel ensures top marks for the sustainability criteria and the environmental assessment of your building project.

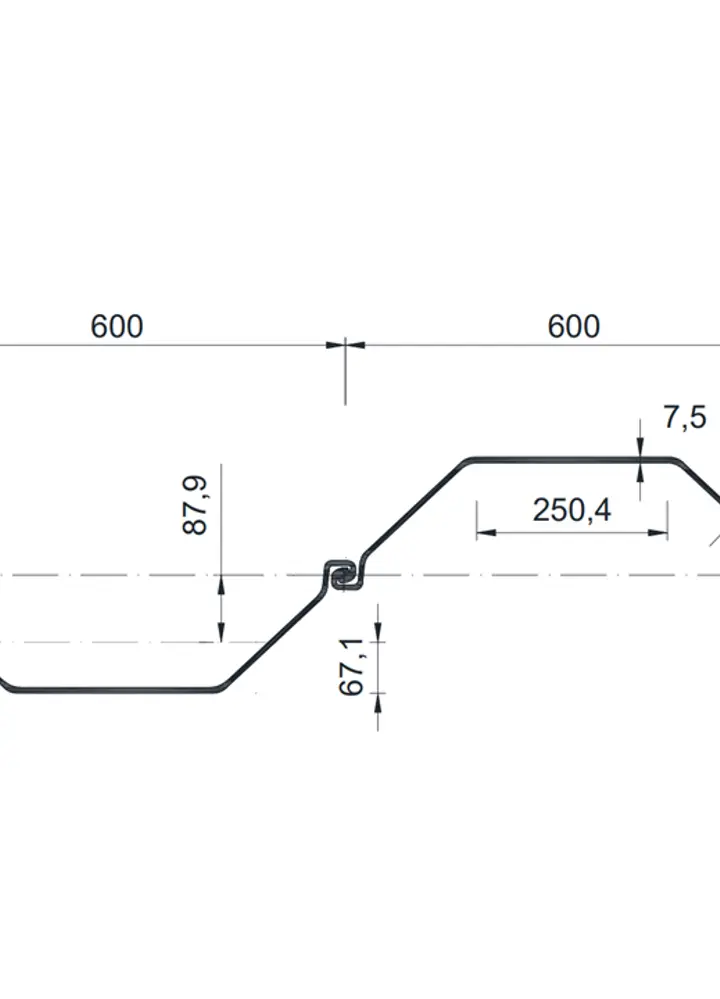

- Planning reliability thanks to precise geometric parameters with a constant profile width of 600 mm and a wall height of 310 mm.
Our comprehensive service for your project
- Flexible procurement: Hire, buy, or choose customized buy/buyback options—tailored to your project budget.
- Ready-to-install preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
- Technical consulting & engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
- Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchor systems, right through to the appropriate driving and extracting equipment—ensuring everything fits together seamlessly on the site.
- Efficiency makes the difference: The efficiency achieved this way gives you a clear advantage in terms of the economic efficiency of your site.
Specification
- Product number
- 46286
- Elastic section modulus [cm/m³]
- 744.00
- Weight [kg/m²]
- 77.20
- Momentum of inertia [cm⁴/m]
- 11,530.00
- Flange thickness [mm]
- 7.50
- Web thickness [mm]
- 6.40
- Height [mm]
- 310.00
