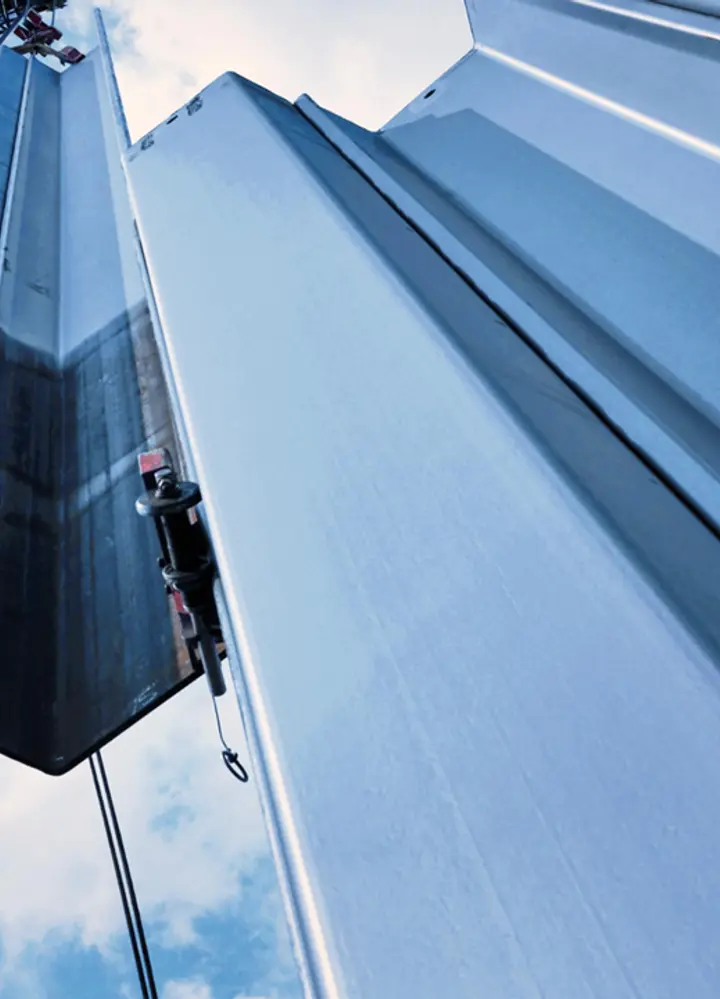

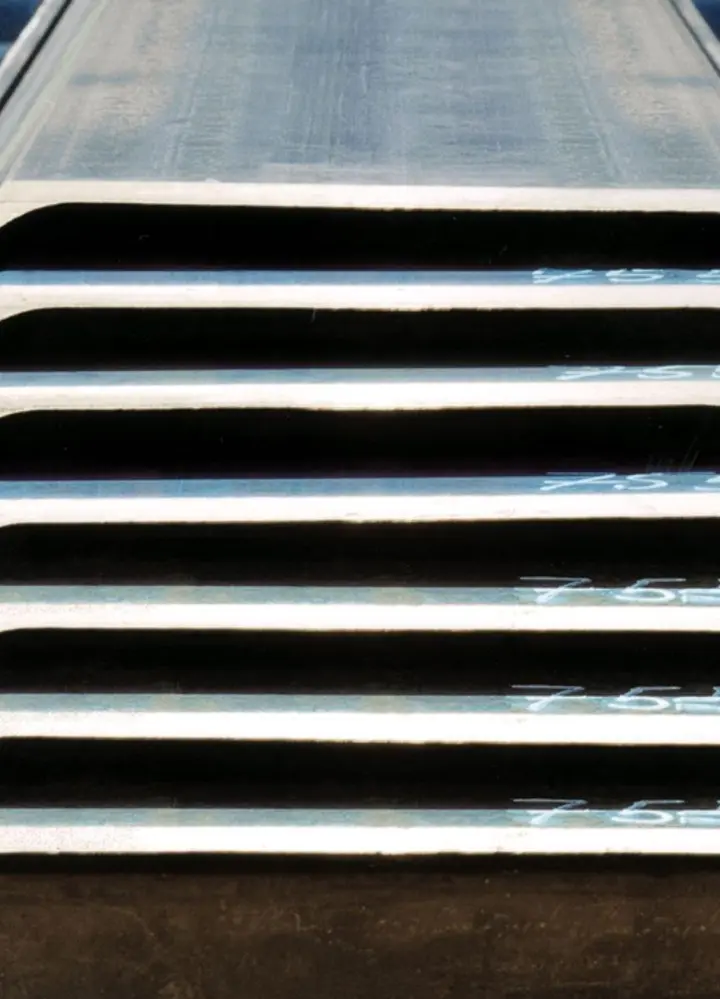

tkL 603 Steel Sheet Pile – The Economical All-Around Profile
If there is such a thing as a standard in shoring, it is the tkL 603. This profile represents a calculated leap into the high-performance class of specialized civil engineering and bridges the gap to the massive, heavy-duty series. With an elastic moment of resistance of 1,200 cm³/m, this type of Larssen sheet pile reliably withstands extreme earth pressures and high water loads where smaller profiles, such as the tkL 602, would fail structurally. Thanks to the optimized wall height of 320 mm, you achieve an outstanding moment of inertia of 19,199 cm⁴/m, which minimizes deformation—for example, at deep excavation pits and at challenging bank reinforcement projects.
Good for your site
Good for your budget
Good for Your Planning
Our comprehensive service for your project
If there is such a thing as a standard in shoring, it is the tkL 603. This profile represents a calculated leap into the high-performance class of specialized civil engineering and bridges the gap to the massive, heavy-duty series. With an elastic moment of resistance of 1,200 cm³/m, this type of Larssen sheet pile reliably withstands extreme earth pressures and high water loads where smaller profiles, such as the tkL 602, would fail structurally. Thanks to the optimized wall height of 320 mm, you achieve an outstanding moment of inertia of 19,199 cm⁴/m, which minimizes deformation—for example, at deep excavation pits and at challenging bank reinforcement projects.
Good for your site
- Extreme driving stability: The robust back thickness of 9.6 mm and the reinforced web construction guarantee that every Larssen-type sheet pile remains dimensionally stable even under difficult soil conditions and at tough driving conditions.
- Perfect interlocking geometry: The precision-machined Larssen profile interlock ensures frictionless sliding during driving and guarantees structural watertightness against hydrostatic pressure—even without separate sealing.
- Full system compatibility: The uniform profile width of 600 mm ensures perfect compatibility with all common driving and extracting techniques as well as standard corner sections.
Good for your budget
- Optimized strength-to-weight ratio: With a dead weight of 107.0 kg/m², the tkL 603 offers maximum static performance with minimal material usage, which significantly lowers your freight and material costs.
- High reusability: Thanks to its tough material and thick walls, this Larssen profile is extremely wear-resistant and can be easily pulled out multiple times and reused on subsequent job sites.
- Logistical Advantage: The reduced weight of the individual sheet (64.2 kg/m) allows for maximum loading capacity during transport and provides acceleration in handling at the storage yard and at the excavation site.
Good for Your Planning
- Predictable bearing capacity according to Eurocode 3: The structural parameters, such as the plastic moment of resistance of 1,386 cm³/m, are precisely defined and provide absolute certainty in any structural design.
- Maximum design flexibility: The increase to 1,200 cm³/m allows for greater unsupported wall heights and reduces the need for complex intermediate bracing or anchoring.
- Sustainability in black and white: The high-quality steel used is fully recyclable, ensures an excellent environmental footprint for your project, and meets all modern standards for sustainable construction.
Our comprehensive service for your project
- Flexible procurement: Hire, buy, or choose customized buy/buyback options—tailored to your project budget.
- Ready-to-install preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
- Technical consulting & engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
- Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchor systems, all the way to the appropriate driving and extracting equipment—so that everything on the site fits together seamlessly.
- Efficiency makes the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economic efficiency.
Specification
- Product number
- 46289
- Elastic section modulus [cm/m³]
- 1,200.00
- Weight [kg/m²]
- 107.00
- Momentum of inertia [cm⁴/m]
- 19.20
- Flange thickness [mm]
- 9.60
- Web thickness [mm]
- 8.20
- Height [mm]
- 320.00
