Sheet Pile TKL 602

Economical ratio of 842 cm³/m of elastic moment of resistance to just 89.0 kg/m² of dead load for cost-optimized civil engineering.

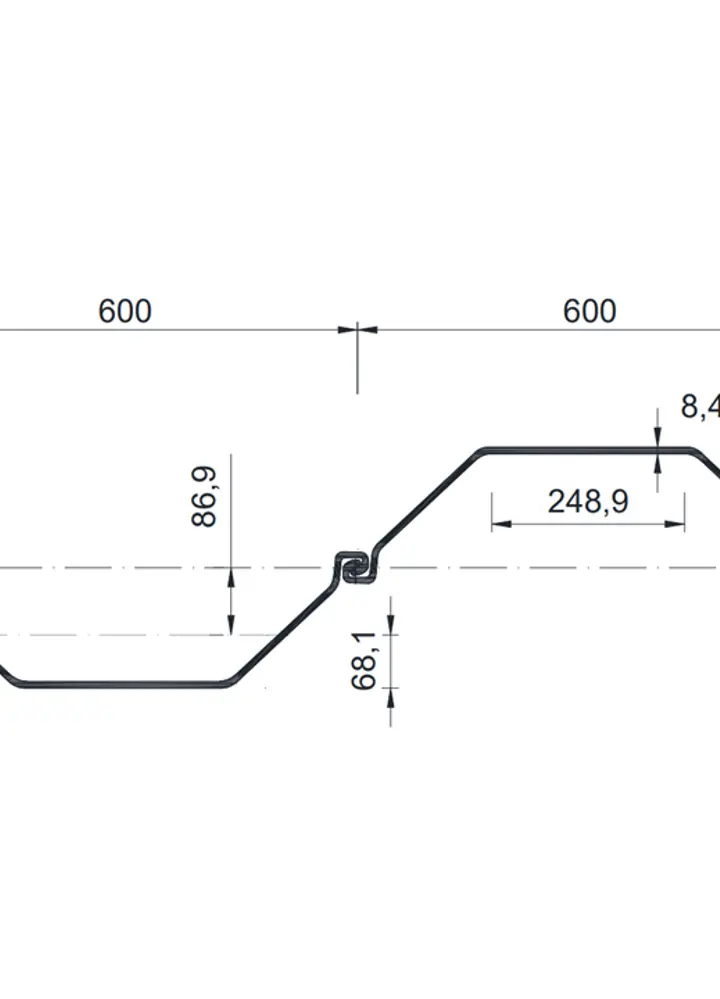

Robust geometry with a 600 mm profile width, 310 mm wall height, and a reinforced back thickness of 8.4 mm for safe driving.
Designed as a classic Larssen profile for maximum interlock integrity, high watertightness, and reliable bearing capacity.

Product number: 46287

Stock availability:

Limited availability

Add to wish list

Product description

tkL 602 Steel Sheet Pile – The Profile for Moderate Loads in Special Civil Engineering

The tkL 602 steel sheet pile is the optimal solution when it comes to maximum material efficiency at moderate structural requirements. With an elastic section modulus of 842 cm³/m, this profile bridges the gap between the lighter profiles of the 601 series and the heavier tkL 603 and above executions, without driving unnecessary steel weight into the ground. The proven design, based on the Larssen sheet piles, guarantees an excellent bearing capacity-to-dead-weight ratio for excavation pits of moderate depths. It is precisely this balanced set of properties that prevents costly oversizing on your site while ensuring the required stability.

Good for your site

High driving stability and optimal force transmission during driving thanks to the robust back thickness of 8.4 mm and a web thickness of 7.6 mm.
The precise interlocking profile of this tkL sheet ensures low-friction threading and enables rapid construction progress while maintaining high watertightness.
Full system compatibility within the 600-mm width class, guaranteeing you maximum flexibility during installation and during the connection / link / attachment of standard corner sections.

Good for your budget

Reduced material costs thanks to the optimized wall weight of 89.0 kg/m², allowing you to purchase exactly the tonnage your structural analysis requires—unlike with larger profiles.
Excellent reusability and extreme durability, as the robust Larssen profile retains its dimensional stability even after repeated driving and pulling.
Significant logistical advantages during transport and handling on the site, thanks to the low individual sheet weight of just 53.4 kg/m.

Good for your planning

Reliable and code-compliant load-bearing capacity verifications according to Eurocode 3, based on a defined elastic section modulus of 842 cm³/m and a plastic section modulus of 1022 cm³/m.
High structural design reliability when calculating retaining walls, at a moment of inertia of 13,046 cm⁴/m for a compact wall height of 310.0 mm.
Sustainable and future-proof construction thanks to the unrestricted recyclability of the high-quality steel used and resource-efficient material utilization.

Our comprehensive service for your project

Flexible procurement: Hire, purchase, or customized buy/buyback options—tailored to your project budget.
Ready-to-install preparation: We deliver the profiles in the correct length—on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
Technical consulting & engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchoring systems, right through to the appropriate driving and extracting equipment—ensuring everything fits together seamlessly on the site.
Efficiency makes the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economicalness.
