Sheet Pile TKL 628

Optimal bearing capacity ratio: Provides an elastic moment of resistance of 1,500 cm³/m at an extremely competitive dead load of just 120.5 kg/m².

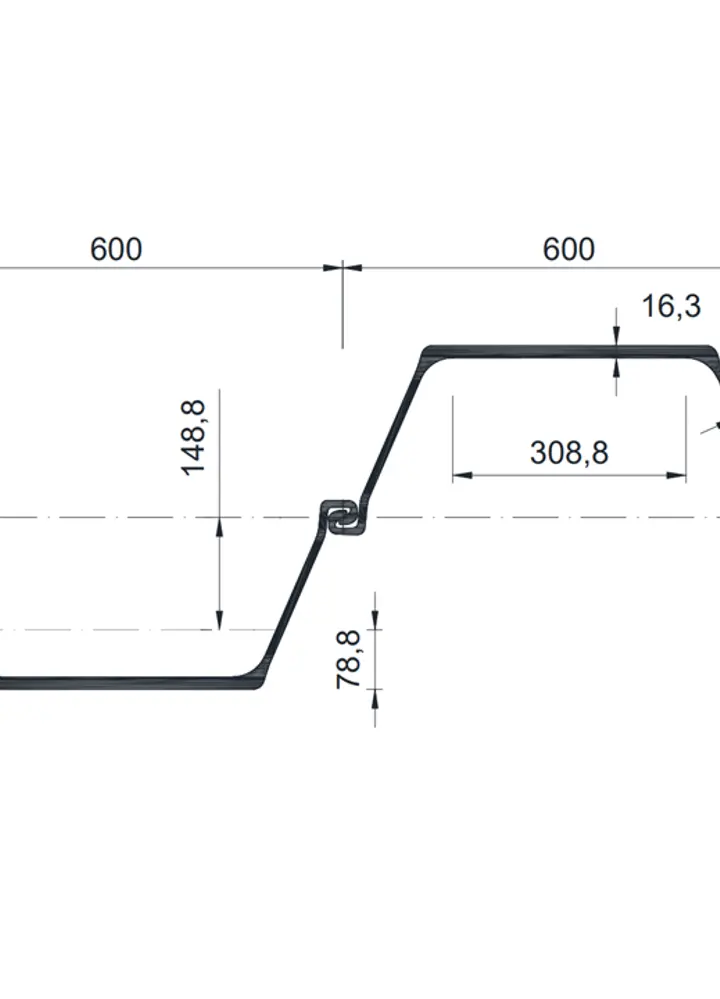

Efficient geometry: With a profile width of 600 mm and a precisely balanced wall height, rapid cycle times are achieved as the shoring progresses.
Top-notch quality: Robust interlocking design and optimized web thickness ensure uncompromising dimensional stability during installation and long-term watertightness of the wall.

Product number: 52409

Stock availability:

Limited availability

Add to wish list

Product description

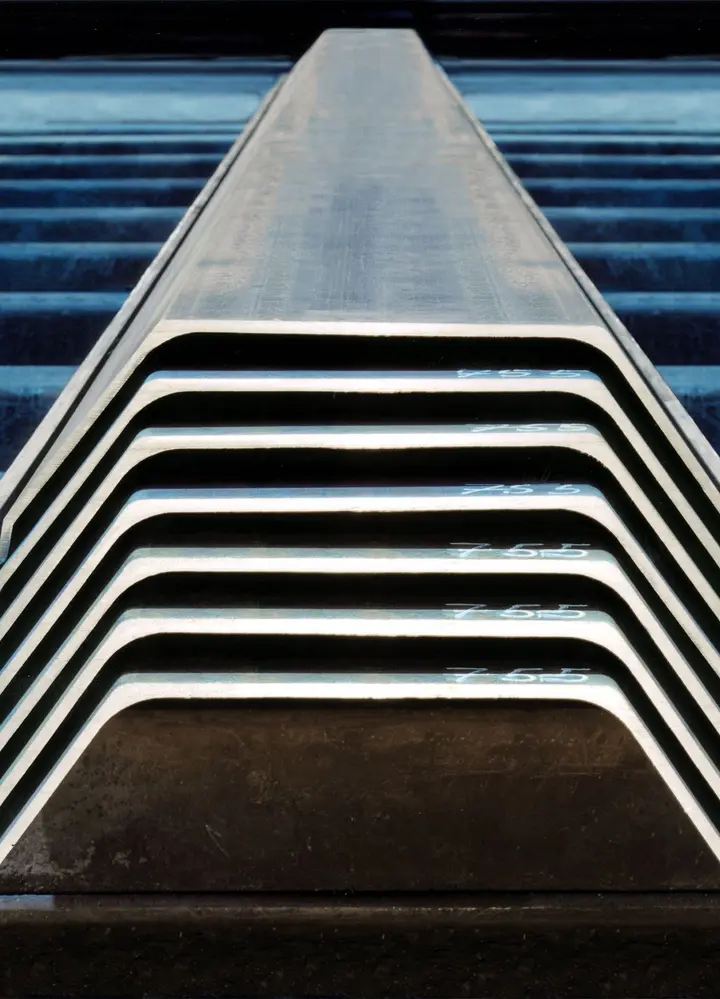

tkL 628 Steel Sheet Pile – The Economical All-Purpose Profile for Heavy Loads and Optimized Excavation Pits

The tkL 628 steel sheet pile fills the gap in the range of solid, heavy-duty sheet piles designed for extreme depths, thereby facilitating the transition from the tkL 606 series to the tkL 607 series. With an elastic moment of resistance of 1,500 cm³/m and an optimized dead load of just 120.5 kg/m², this Larssen-type profile offers the perfect balance between high static load-bearing capacity and excellent material efficiency. Exactly where smaller models reach their structural limits and larger profiles would unnecessarily burn your budget, this sheet pile ensures the economical and safe shoring of your project. Additionally, the tkL 628 is always a safe choice in the field of harbour constructions and hydraulic engineering, e.g., at bank protection.

Good for your site

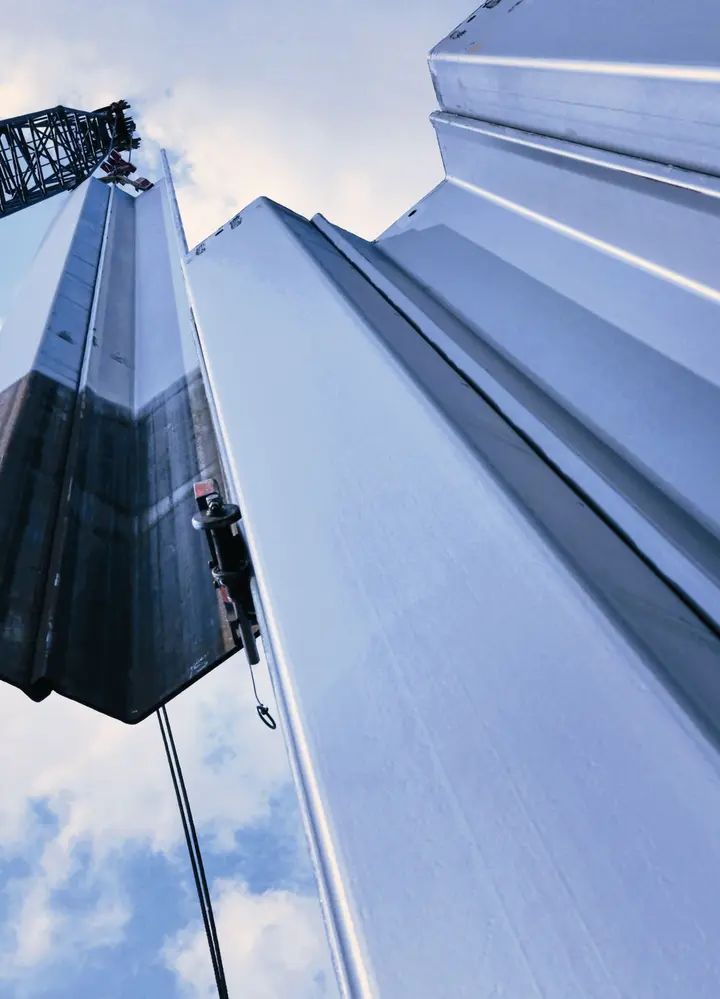

Maximum driving stability thanks to the optimized wall height and robust web thickness, which guarantee deformation-free driving even at difficult soil conditions.
The proven interlocking geometry of the Larssen sheet ensures smooth interlocking of the profiles and prevents unnecessary downtime during the driving or pressing process.
Excellent system compatibility with all common corner sections and standard flanges, which significantly simplifies flexible use in varying geometries.

Good for your budget

Significant reduction in material costs, as the optimized ratio of moment of resistance to steel weight drastically lowers the price per metric ton per square meter of retaining wall.
Logistical advantage across the board thanks to the reduced transport weight, allowing you to deliver more square meters of retaining wall per truckload to the site.
High reusability and exceptional investment security, as the low-wear profile can be easily reused multiple times and deployed on subsequent construction sites.

Good for your planning

Reliable and legally compliant bearing capacity design according to Eurocode 3 without hidden safety margins.
Design flexibility for planners and structural engineers, as the profile provides precise performance reserves for moderate earth pressure conditions and average excavation depths.
Full sustainability in project design thanks to the unrestricted recyclability of the structural steel used after its service life.

Our comprehensive service for your project

Flexible procurement: Hire, buy, or customized buy/buyback options—tailored to your project budget.
Ready-to-install preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
Technical Consulting & Engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchor systems, all the way to the appropriate driving and extracting equipment—so that everything fits together seamlessly on the site.
Efficiency makes the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economical nature.
