Product description
tkL 607 Steel Sheet Pile – The High-Performance Heavyweight for Extreme Depths and Maximum Loads
The tkL 607 represents the absolute pinnacle of performance in this product series and comes into its own where smaller profiles have long since reached their structural limits. With a massive elastic section modulus of over 2,500 cm³/m and the highest wall height in its class, this Larsen-type sheet pile withstands even extreme earth pressure and rising groundwater in deep excavations for heavy special civil engineering projects or in harbour constructions and hydraulic engineering. When failure is not an option and the geology demands everything from you, this profile delivers the necessary uncompromising stability.
Good for your site
Good for your budget
Good for your planning
Our comprehensive service for your project
The tkL 607 represents the absolute pinnacle of performance in this product series and comes into its own where smaller profiles have long since reached their structural limits. With a massive elastic section modulus of over 2,500 cm³/m and the highest wall height in its class, this Larsen-type sheet pile withstands even extreme earth pressure and rising groundwater in deep excavations for heavy special civil engineering projects or in harbour constructions and hydraulic engineering. When failure is not an option and the geology demands everything from you, this profile delivers the necessary uncompromising stability.
Good for your site
- Maximum driving stability: Thanks to its enormous web thickness and optimized web design, this Larssen sheet pile advances even through extremely dense soil layers without sustaining damage at the head or toe.
- Perfectly interlocking geometry: The proven Larssen profile guarantees low-friction driving while providing maximum force transmission and excellent interlock security against unthreading.
- Robust system integration: Full compatibility with heavy-duty standard driving and extracting techniques ensures rapid construction progress without time-consuming custom solutions.
Good for your budget
- Highest reusability: The extreme material thickness prevents premature wear, allowing you to extract the profiles more frequently than average and use them economically on subsequent projects.
- Optimized weight-to-output ratio: Despite the massive profile weight of over 156.8 kg/m², you save money because the enormous bearing capacity means you need to purchase fewer anchors or bracing layers.
- Investment security for small and medium-sized businesses: Durable, high-quality steel and the high market demand for heavy-duty Larssen Sheet piles ensure an excellent residual value in the event of a later resale.
Good for your planning
- Predictable bearing capacity according to Eurocode 3: An elastic section modulus that marks the upper limit of the product series guarantees a legally compliant, uncompromising structural design.
- Design flexibility: The optimized wall height, combined with the high moment of inertia, allows for slender, high-load-bearing structures while maximizing the use of the interior excavation area.
- Sustainability on the Foundation: 100% recyclable structural steel with a complete chain of custody ensures a green life cycle assessment and meets all modern procurement criteria.
Our comprehensive service for your project
- Flexible Procurement: Hire, buy, or choose customized buy/buyback options—tailored to your project budget.
- Ready-to-Install Preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
- Technical Consulting & Engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
- Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchor systems, right through to the appropriate driving and extracting equipment—ensuring everything fits together seamlessly on the site.
- Efficiency makes all the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economicalness.

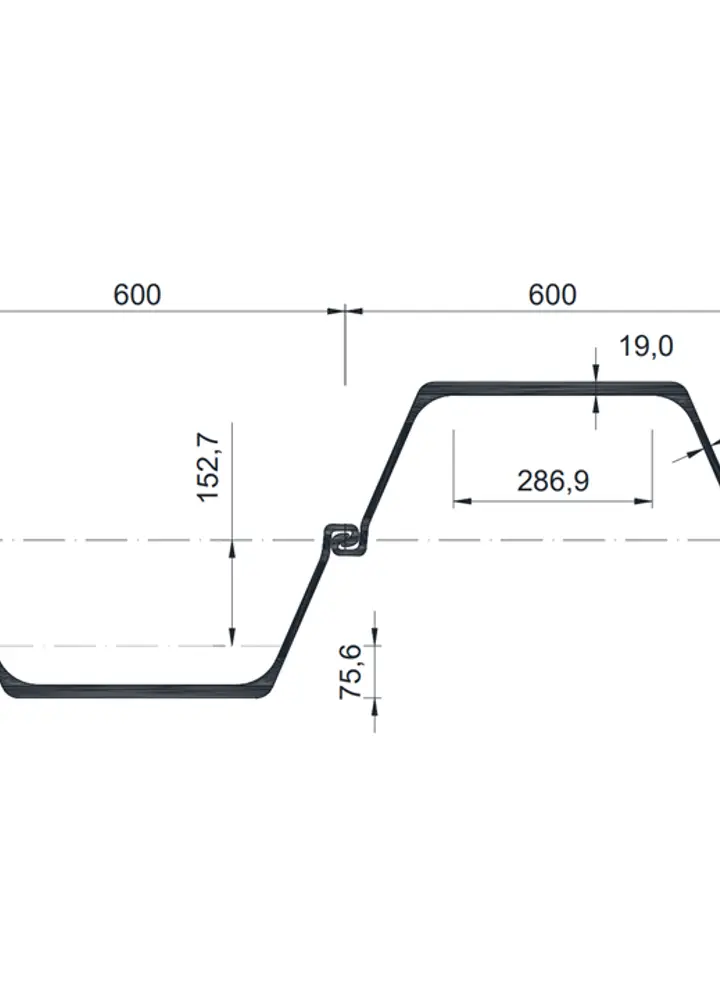

Specification
- Product number
- 51373
- Elastic section modulus [cm/m³]
- 3,211.00
- Weight [kg/m²]
- 187.30
- Momentum of inertia [cm⁴/m]
- 73,300.00
- Flange thickness [mm]
- 19.00
- Web thickness [mm]
- 10.60
- Height [mm]
- 456.50
