Product description
Due to their outstanding properties, our hot-rolled sheet pile sections are primarily used in hydraulic engineering, road construction and civil engineering. Hot-rolled sheet pilded sections are made from a pre-material that is heated to over 1,200 degrees. Due to the high plasticity of the steel, various profile shapes are possible.
Advantages
- Wide range of profiles for a wide variety of applications
- Excellent static properties
- Optimum reusability
- High installation and quality performance
- Easy installation of anchor systems and articulated connections, even under water

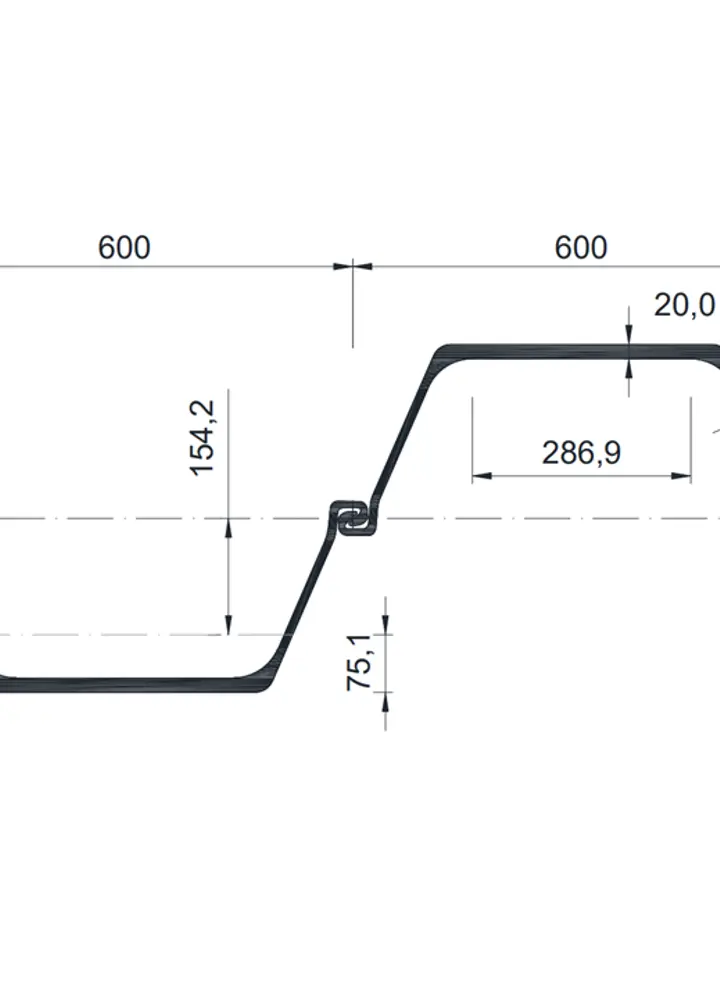

Specification
- Product number
- 52403
- Elastic section modulus [cm/m³]
- 3,365.00
- Weight [kg/m²]
- 194.70
- Momentum of inertia [cm⁴/m]
- 77,153.00
- Flange thickness [mm]
- 20.00
- Web thickness [mm]
- 11.00
- Height [mm]
- 458.50
