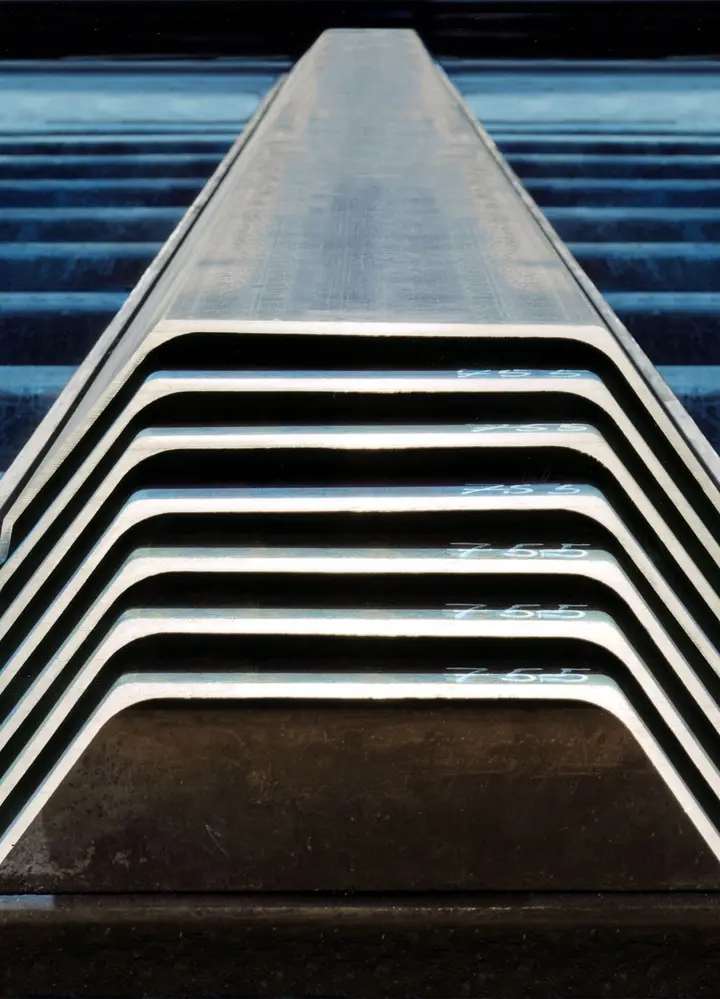

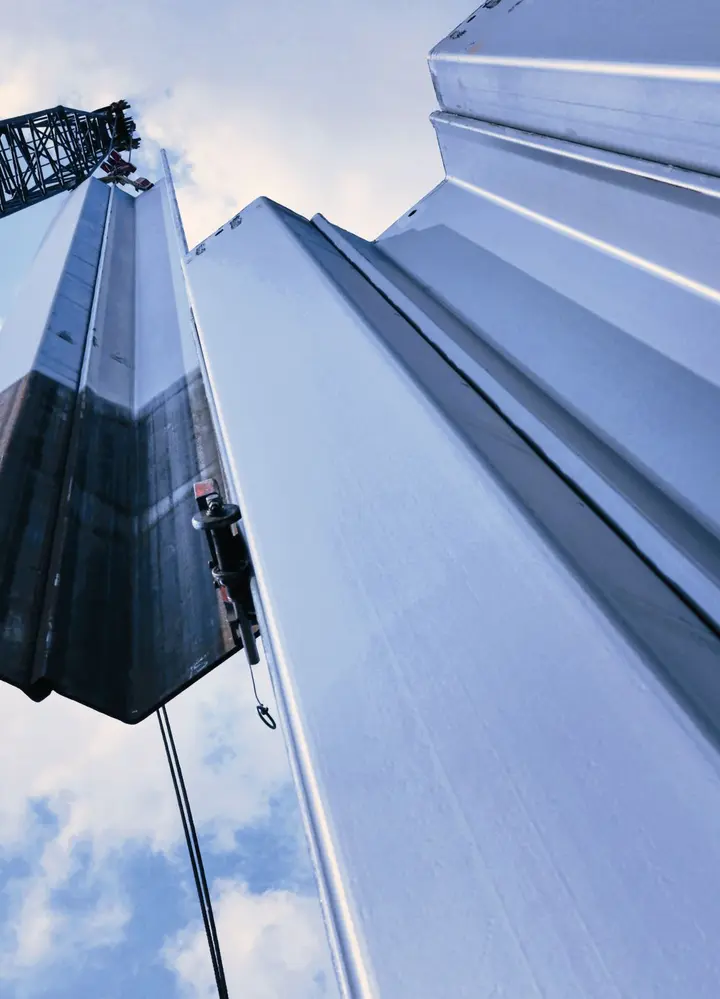

tkL 606N Steel Sheet Pile – The High-Performance Profile for Enormous Depths and Extreme Loads
Anyone working in special civil engineering who cannot afford to compromise at deep excavations and with enormous earth pressure needs a profile with maximum moment of resistance. The same applies to port and harbour constructions as well as civil engineering. The tkL 606N sits at the top end of the performance scale of our Sheet pile series and delivers extreme resistance to deformation with an elastic moment of resistance of 2,506 cm³/m and a section modulus of 54,389 cm⁴/m. This heavy-duty Larssen-type profile ensures unyielding stability where lighter profiles have long since reached their structural limits. With a wall height of 434.0 mm, this robust set of Sheet piles confidently absorbs extreme structural loads and provides economical protection for even the most demanding large-scale projects—such as heavy earthworks.
Good for your site
Good for your budget
Good for your planning
Our comprehensive service for your project
Anyone working in special civil engineering who cannot afford to compromise at deep excavations and with enormous earth pressure needs a profile with maximum moment of resistance. The same applies to port and harbour constructions as well as civil engineering. The tkL 606N sits at the top end of the performance scale of our Sheet pile series and delivers extreme resistance to deformation with an elastic moment of resistance of 2,506 cm³/m and a section modulus of 54,389 cm⁴/m. This heavy-duty Larssen-type profile ensures unyielding stability where lighter profiles have long since reached their structural limits. With a wall height of 434.0 mm, this robust set of Sheet piles confidently absorbs extreme structural loads and provides economical protection for even the most demanding large-scale projects—such as heavy earthworks.
Good for your site
- Maximum driving stability thanks to a back thickness of 15.4 mm and a web thickness of 9.8 mm, ensuring that the Larssen sheet pile does not break out or deform even at dense grounds and under harsh driving conditions.
- Perfectly matched interlocking geometry for seamless engagement during driving, which accelerates installation progress and minimizes the need for rework.
- High inherent robustness of the entire system, which guarantees excellent watertightness and ensures compatibility with standard driving and extracting techniques.
Good for your budget
- Optimal ratio of extremely high moment of resistance to steel weight used, which saves on expensive material per square meter of wall area compared to heavier custom designs.
- Enormously high reusability and durability of the solid profiles, allowing the purchase price to quickly pay for itself across multiple construction phases or subsequent projects.
- Logistical advantage due to the 600-mm profile width, which ensures efficient transport cycles and reduced freight costs despite the system’s enormous performance capabilities.
Good for your planning
- High reliability and crystal-clear bearing capacity in accordance with Eurocode 3, which provides structural engineers with maximum planning certainty even at limit values.
- Design flexibility when dimensioning permanent or temporary shoring measures in demanding inner-city or waterfront civil engineering projects.
- Sustainable foundation thanks to the 100% recyclability of steel, which improves the environmental footprint of the entire building project.
Our comprehensive service for your project
- Flexible procurement: Hire, buy, or choose customized buy/buyback options—tailored to your project budget.
- Ready-to-install preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant for water pressure.
- Technical Consulting & Engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
- Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, tie beams, and anchor systems, right through to the appropriate driving and extracting equipment—ensuring everything fits together seamlessly on the site.
- Efficiency makes all the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economicalness.

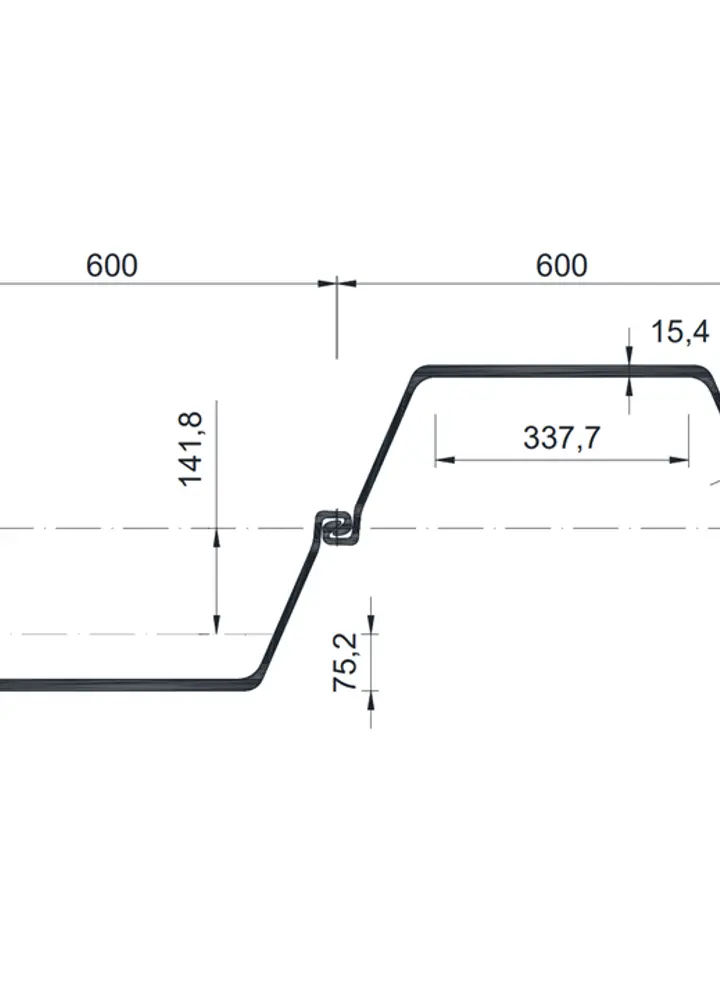

Specification
- Product number
- 52322
- Elastic section modulus [cm/m³]
- 2,506.00
- Weight [kg/m²]
- 156.80
- Momentum of inertia [cm⁴/m]
- 54,389.00
- Flange thickness [mm]
- 15.40
- Web thickness [mm]
- 9.80
- Height [mm]
- 434.00
