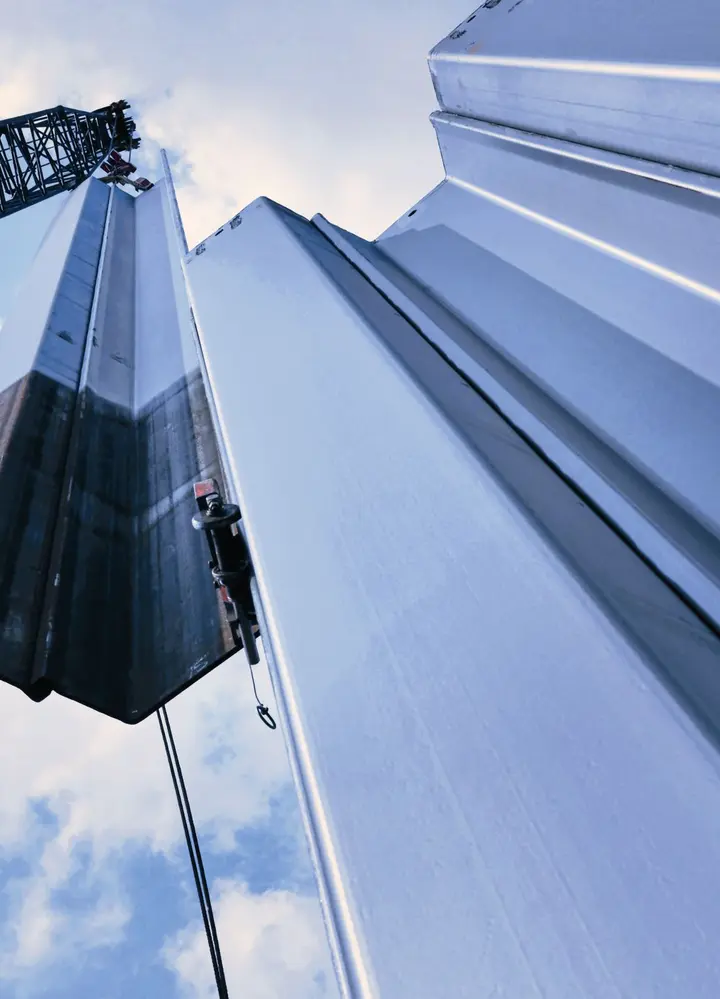

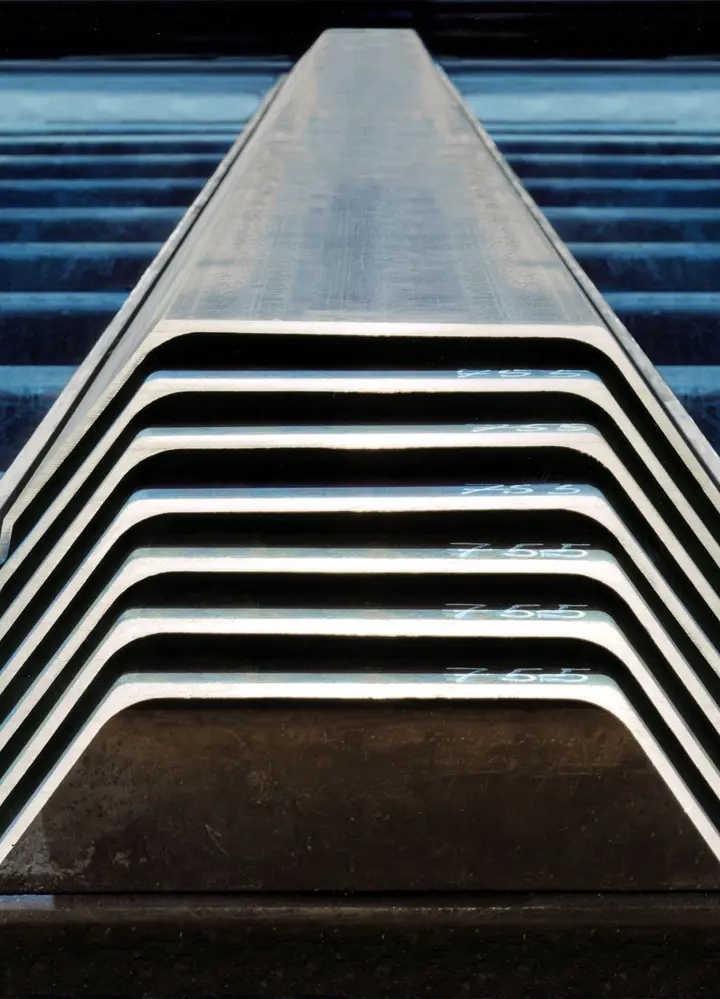

tkL 606 Steel Sheet Pile – The Uncompromising Heavyweight for Extreme Depths and Loads
When water pressure rises and the excavation reaches deep into the ground, there’s no room for compromise. The tkL 606 is one of the top-of-the-line profiles in the series and was specifically developed for the most demanding structural challenges. With an outstanding elastic moment of resistance of up to 2,506 cm³/m, this Larssen-type sheet pile effortlessly withstands extreme earth pressures where smaller profiles would have long since failed. This heavy-duty profile guarantees maximum stability at an optimized wall width and sets new standards in heavy special civil engineering, port construction, and harbour constructions.
Good for your site
Good for your budget Good
Good for your budget
Good for your planning
Our comprehensive service for your project
When water pressure rises and the excavation reaches deep into the ground, there’s no room for compromise. The tkL 606 is one of the top-of-the-line profiles in the series and was specifically developed for the most demanding structural challenges. With an outstanding elastic moment of resistance of up to 2,506 cm³/m, this Larssen-type sheet pile effortlessly withstands extreme earth pressures where smaller profiles would have long since failed. This heavy-duty profile guarantees maximum stability at an optimized wall width and sets new standards in heavy special civil engineering, port construction, and harbour constructions.
Good for your site
- Maximum driving stability: Thanks to the enormous back thickness of up to 15.4 mm and the robust web construction, you can drive each sheet pile even through extremely hard soil layers without material deformation.
- Optimized interlocking geometry: The proven Larssen profile interlock guarantees smooth interlocking during driving and ensures excellent force transmission at the same time as providing a high level of watertightness against hydrostatic pressure.
- System-compatible robustness: The 600-mm profile width ensures rapid construction progress, withstands harsh job site conditions during driving or hammering, and can be perfectly combined with all standard driving and hammering techniques.
Good for your budget Good
- Unbeatable Reusability: Thanks to its substantial wall thickness and extreme material strength, our tkL 606 sheet pile withstands numerous cycles of use without significant wear, which drastically lowers your rental and maintenance costs.
- Efficient Power-to-Weight Ratio: Despite its massive moment of resistance, the dead load—at a maximum of 156.8 kg/m²—remains highly economical compared to its static bearing capacity and reduces logistics costs compared to heavy custom structures.
- High investment security: The extremely durable material—steel—retains a high residual value even after years of use and offers you planning certainty through flexible buyback options.
Good for your budget
- Calculable bearing capacity according to Eurocode 3: With a plastic moment of resistance of up to 2,887 cm³/m, the profile delivers precisely defined, uncompromising performance for the structural validation of the deepest excavation pits.
- Design flexibility: The enormous wall height of up to 434 mm enables, among other things, freestanding structures without space-consuming intermediate bracing or complex anchoring systems.
- Sustainable Foundation: The profile is comprised of 100% recyclable structural steel, can be completely dismantled after use, and sustainably improves the environmental footprint of your entire building project.
Good for your planning
- Flexible Procurement: Hire, buy, or choose customized buy/buyback options—tailored to your project budget.
- Ready-to-Install Preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
- Technical Consulting & Engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
Our comprehensive service for your project
- Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchoring systems, right through to the appropriate driving and extracting equipment—ensuring everything fits together seamlessly on the site.
- Efficiency makes the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economical nature.
- Peak moment of resistance: Up to 2,506 cm³/m (elastic) respectively 2,887 cm³/m (plastic) guarantee absolute stability in the premier class of specialized civil engineering.

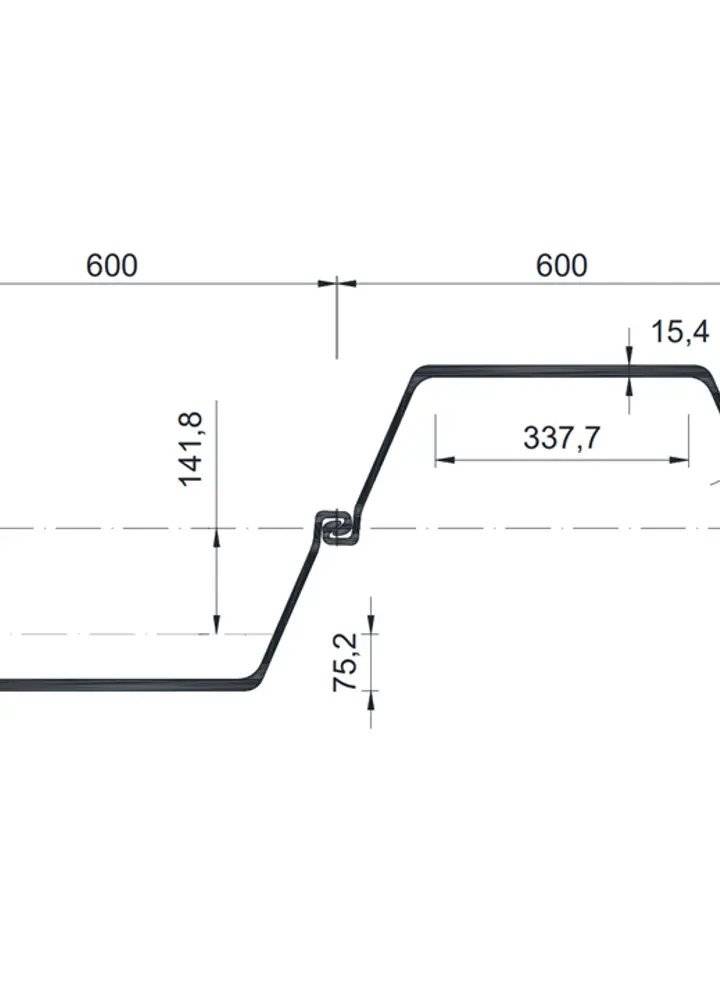

- Solid wall thicknesses for hard grounds: Up to 15.4 mm back thickness and 9.8 mm web thickness ensure that every Larssen sheet pile can be driven to final depth without warping.
- Maximum rigidness: The moment of inertia of up to 54,389 cm⁴/m minimizes deformation of the wall structure at extreme earth pressures and at great excavation depths.
