tkL 605N Steel Sheet Pile – The High-Performance Sheet Pile for Exceptional Depths and Extreme Loads
The tkL 605N is your solution for unforgiving soil conditions and enormous earth pressures. With an elastic moment of resistance of 2,019 cm³/m, this profile ranks in the top performance segment and far outperforms the smaller alternatives of the 603 and 604 series in terms of bearing capacity. This extremely robust Larsen-type sheet pile was specifically developed for the most demanding excavation pits and deep terrain drops, where more moderate profiles fail structurally. Thanks to the optimized wall height of 422.6 mm and the enormous moment of inertia, you achieve maximum bending resistance with excellent material efficiency, making it suitable for use in port and harbour constructions as well.
Good for your site
Good for your budget
Good for your planning
Our comprehensive service for your project
The tkL 605N is your solution for unforgiving soil conditions and enormous earth pressures. With an elastic moment of resistance of 2,019 cm³/m, this profile ranks in the top performance segment and far outperforms the smaller alternatives of the 603 and 604 series in terms of bearing capacity. This extremely robust Larsen-type sheet pile was specifically developed for the most demanding excavation pits and deep terrain drops, where more moderate profiles fail structurally. Thanks to the optimized wall height of 422.6 mm and the enormous moment of inertia, you achieve maximum bending resistance with excellent material efficiency, making it suitable for use in port and harbour constructions as well.
Good for your site
- Uncompromising driving stability: Thanks to the solid back thickness of 12.0 mm and a web thickness of 9.5 mm, every single Larssen sheet can withstand even high driving forces in dense grounds without deformation.
- First-class interlocking geometry: The precisely manufactured interlocks guarantee smooth interlocking during driving or vibration and ensure excellent form-fit.
- Perfect system watertightness: The proven Larssen profile can be easily combined with factory-installed sealing systems at water pressure to reliably keep your excavation pit dry.
Good for your budget
- Optimal ratio of weight to output: Despite the high moment of resistance of over 2,000 cm³/m, the dead load of 136.9 kg/m² remains economically balanced, which significantly lowers your transportation and material costs.
- Extremely high reusability: The steel’s exceptional robustness ensures that you can easily reuse these Sheet piles on the next large construction site after extraction.
- Logistics Efficiency: The standard profile width of 600 mm ensures rapid construction progress, so you have to handle fewer individual sheet piles and effectively save on crane time.
Good for your planning
- Predictable Bearing Capacity According to Eurocode 3: With a plastic moment of resistance of 2,348 cm³/m, the profile delivers reliable, code-compliant peak values for your structural analysis.
- Design flexibility: The enormous area moment of inertia of 42,664 cm⁴/m allows for larger clear spans and reduces the need for complex intermediate bracing or anchoring.
- Sustainable Foundation: The high-quality steel used is fully recyclable, ensures a positive environmental footprint for your project, and easily meets modern environmental regulations.
Our comprehensive service for your project
- Flexible Procurement: Hire, buy, or choose customized buy/buyback options—tailored to your project budget.
- Ready-to-Install Preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
- Technical Consulting & Engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
- Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchor systems, right through to the appropriate driving and extracting equipment—ensuring everything fits together seamlessly on the site.
- Efficiency makes the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economicalness.

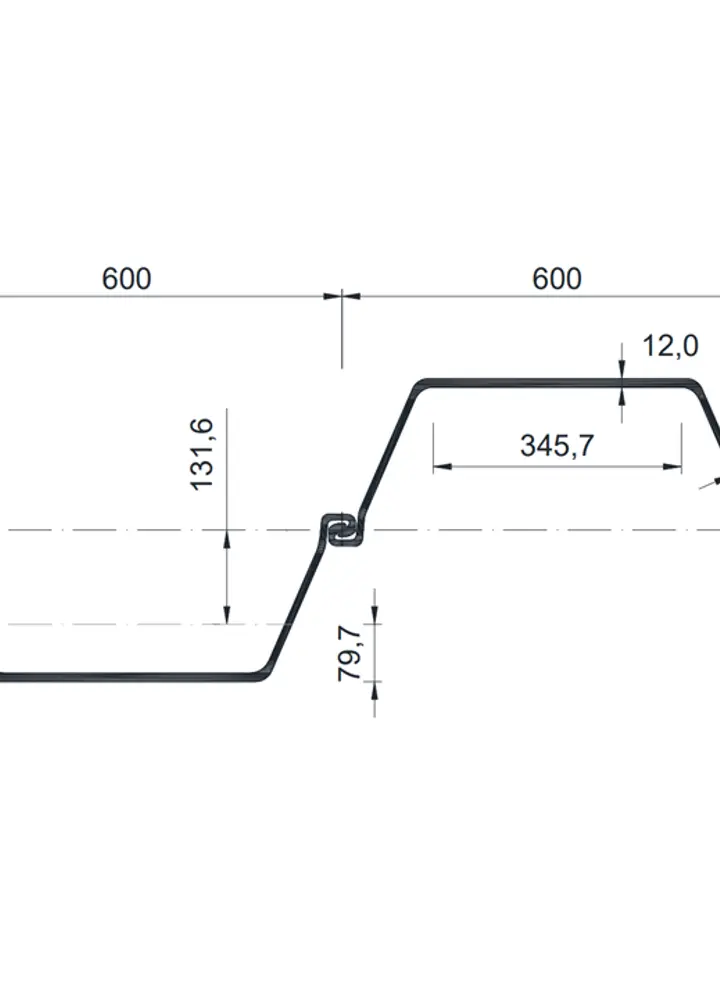

Specification
- Product number
- 51670
- Elastic section modulus [cm/m³]
- 2,019.00
- Weight [kg/m²]
- 136.90
- Momentum of inertia [cm⁴/m]
- 42,664.00
- Flange thickness [mm]
- 12.00
- Web thickness [mm]
- 9.50
- Height [mm]
- 422.60
