tkL 605A Steel Sheet Pile – The Economical, High-Performance Solution for Maximum Depths and Extreme Loads
The tkL 605A is the strategic solution for demanding civil engineering projects at which immense earth pressure and water forces must be safely controlled. With an elastic moment of resistance of 1,821 cm³/m, this profile ranks among the absolute top tier and provides a heavy-duty barrier for deep excavation pits, while offering significant savings in material weight and procurement costs compared directly to the heavier tkL 605N execution. This optimized Larsen-type sheet pile combines an impressive wall height of 420 mm with a highly efficient bearing capacity-to-dead-weight ratio, ensuring maximum stability even under difficult geological conditions while reducing drilling and driving costs.
Good for your site
Good for your budget
Good for your planning
Our comprehensive service for your project
The tkL 605A is the strategic solution for demanding civil engineering projects at which immense earth pressure and water forces must be safely controlled. With an elastic moment of resistance of 1,821 cm³/m, this profile ranks among the absolute top tier and provides a heavy-duty barrier for deep excavation pits, while offering significant savings in material weight and procurement costs compared directly to the heavier tkL 605N execution. This optimized Larsen-type sheet pile combines an impressive wall height of 420 mm with a highly efficient bearing capacity-to-dead-weight ratio, ensuring maximum stability even under difficult geological conditions while reducing drilling and driving costs.
Good for your site
- High driving stability and robustness during driving, as the Larssen sheet pile withstands even heavy driving impacts and difficult grounds over the long term, despite its optimized web thickness of 9.0 mm.
- Perfect interlock geometry for high watertightness and minimal frictional resistance, which accelerates installation and significantly reduces the need for rework at times of rising groundwater.
- Full system compatibility across the entire product line, allowing direct connections / links / attachments to standard profiles and corner elements without time-consuming custom designs.
Good for your budget
- Excellent material efficiency thanks to an optimized steel weight of 127.5 kg/m², which noticeably lowers the tonnage for freight costs and the cost of materials alone compared to heavier profiles in the 600 series.
- High reusability and outstanding investment security, as the low-wear Larssen profile can be pulled multiple times and reused on subsequent job sites without any significant loss of performance.
- Logistical handling advantages due to the reduced individual sheet weight of 76.5 kg/m, which allows for lighter lifting (gear) and significantly eases the burden on construction site logistics.
Good for your planning
- Reliable and precisely calculable bearing capacity according to Eurocode 3, which provides structural engineers and planners with maximum design reliability when dimensioning deep excavation walls.
- Structural flexibility for complex geometries in special civil engineering projects thanks to a high moment of inertia of 38,243 cm⁴/m, which minimizes deformation even at extreme clear heights.
- Sustainability at the heart of the project thanks to 100% recyclable structural steel, which improves the environmental footprint of the entire structure and simplifies demolition planning.
Our comprehensive service for your project
- Flexible procurement: Hire, buy, or customized buy/buyback options—tailored to your project budget.
- Ready-to-Install Preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
- Technical Consulting & Engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
- Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchor systems, right through to the appropriate driving and extracting equipment—ensuring everything fits together seamlessly on the site.
- Efficiency makes the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economical nature.

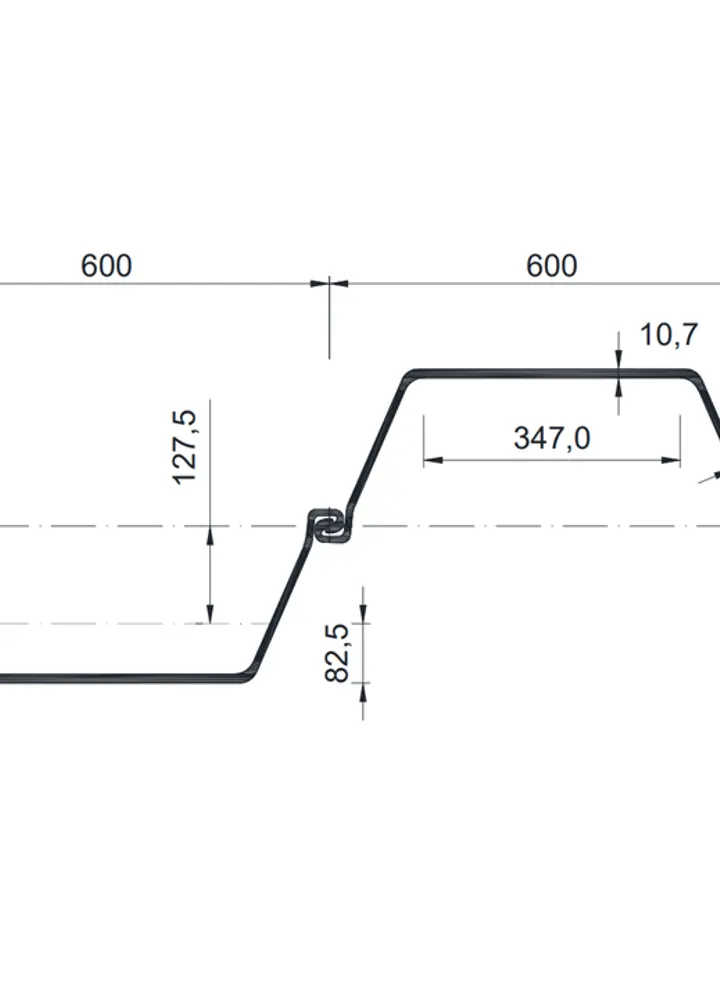

Specification
- Product number
- 47804
- Elastic section modulus [cm/m³]
- 1,821.00
- Weight [kg/m²]
- 127.50
- Momentum of inertia [cm⁴/m]
- 38,243.00
- Flange thickness [mm]
- 10.70
- Web thickness [mm]
- 9.00
- Height [mm]
- 420.00
