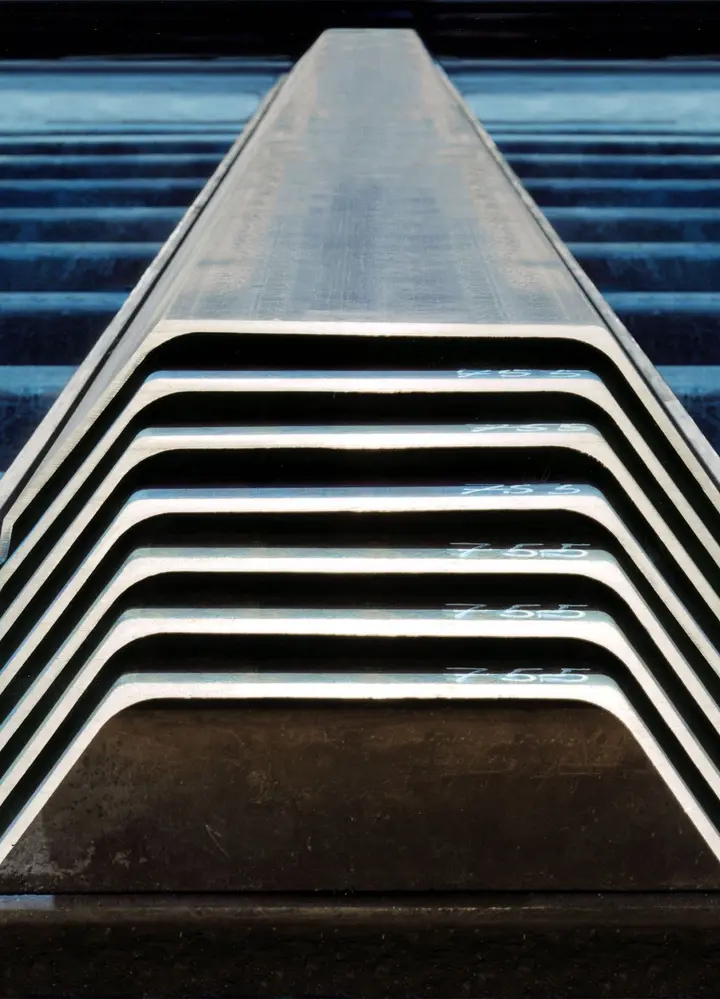

Sheet Pile TKL 603N

Enormous stiffness with moderate mass: A moment of inertia of 24,269 cm⁴/m at a self-weight of only 105.7 kg/m².
Optimized geometry for deep shoring applications: A wall height of 381.2 mm provides a long lever arm for absorbing bending moments.
Economical powerhouse of the tkL series: Delivers an elastic section modulus of 1,273 cm³/m, thereby surpassing the bearing capacity of flat profiles in the 603 class.

Product number: 52410

Stock availability:

Limited availability

Add to wish list

Product description

tkL 603N Steel Sheet Pile – The Highly Efficient Profile for Deep Excavations and Optimized Load Transfer

The tkL 603N bridges the gap between standard profiles and the heavy-duty mid-range by delivering an excellent moment of inertia of 24,269 cm⁴/m at a relatively low dead weight, thanks to an optimized wall height of 381.2 mm. This specific Larssen-type profile solves the problem of high earth pressures at medium to great depths without straining the budget through unnecessary material usage. Where shallower Sheet piles reach their structural limits, this optimized profile ensures the necessary stiffness of the entire structure.

Good for your site

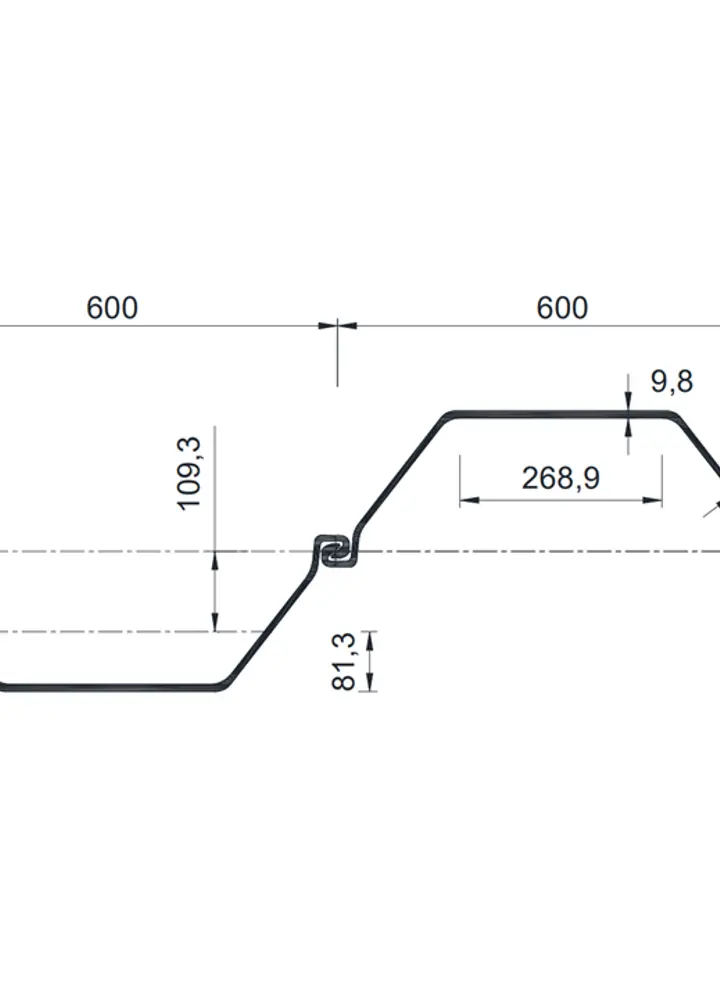

High driving stability when driven into heavy grounds thanks to the robust back thickness of 9.8 mm and the optimized profile geometry.
Reliability of sealing of the shoring system due to the precisely manufactured Larssen interlocking geometry, which keeps the sheet on track even under challenging ground conditions.
Full system compatibility with common driving and extracting techniques as well as standard corner sections for fast and smooth construction progress.

Good for your budget

Optimal ratio of moment of resistance to dead weight saves tons of material and drastically lowers pure acquisition and transportation costs.
High reusability of the Larssen type of sheet piles due to extremely durable steel, which minimizes the cost per day of use in rental or multiple-use scenarios.
Lower logistics costs on the road and at the site, as less weight per square meter of wall area needs to be moved compared to comparable profiles with similar stiffness.

Good for your planning

Bearing capacity calculable with pinpoint accuracy according to Eurocode 3 for legally compliant and economical design of the shoring system.
Maximum planning reliability for deep excavations due to the high moment of inertia, which effectively minimizes wall deformations at the serviceability limit state.
Full sustainability and easy circular economy, as the material used is 100 percent recyclable and can be directly reused after dismantling.

Our all-around service for your project

Flexible procurement: Hire, buy, or customized buy/buyback options—tailored to your project budget.
Ready-to-Install Preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
Technical Consulting & Engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchor systems, right through to the appropriate driving and extracting equipment—ensuring that everything on the site fits together seamlessly.
Efficiency makes all the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economicalness.
