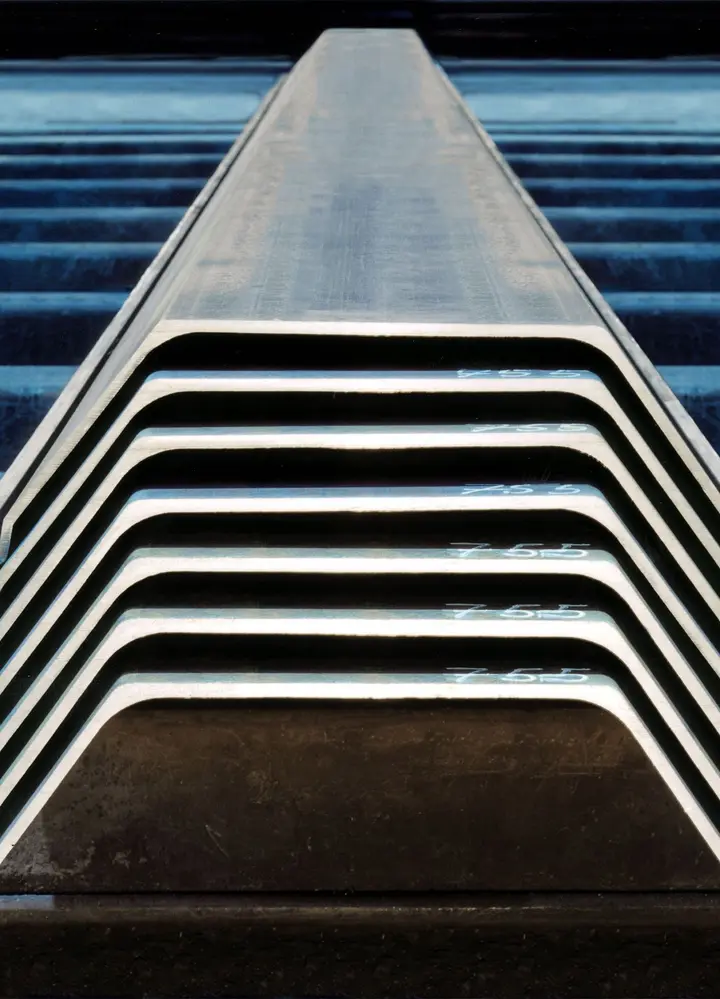

Sheet Pile TKL 603K

Enormous bending resistance: Elastic section modulus of 1,241 cm³/m with an economical self-weight of only 113.0 kg/m².
Massive moment of inertia: The area moment of inertia of 19,853 cm⁴/m minimizes deformation of the Larssen-type Sheet piles even at greater unsupported heights.
Increased material thickness: A web thickness of 9.0 mm combined with a back thickness of 9.8 mm ensures maximum robustness when driving into difficult soil conditions.

Product number: 47813

Stock availability:

Limited availability

Add to wish list

Product description

tkL 603 K Steel Sheet Pile – The Powerhouse for Deep Excavations and Heavy Loads

When soil pressure increases and lighter profiles reach their structural limits, the tkL 603 K comes into its own. As a heavy-duty Larssen-type sheet pile with an elastic moment of resistance of 1,241 cm³/m and a robust web thickness of 9.8 mm, this sheet pile safely withstands extreme loads in deep excavation and sewer construction. Compared directly to the lighter profiles of the 601 and 602 series, it offers a massive increase in bearing capacity without unnecessarily increasing the transport weight due to oversized dimensions. This profile solves the problem of tight economical constraints while simultaneously meeting maximum safety requirements for wall height and earth pressure.

Good for your site

Maximum driving stability: Thanks to the reinforced web thickness of 9.0 mm, this Larssen profile withstands even harsh driving conditions in dense grounds without deforming.
Optimized interlock geometry: The precision-manufactured Larssen interlock guarantees low-friction engagement during driving or vibration and ensures excellent interlock alignment.
High system compatibility: The 600-mm profile width fits perfectly into common standard guide systems and can be seamlessly combined with standard corner sections.

Good for your budget

Excellent weight-to-output ratio: With a dead weight of 113.0 kg/m², you achieve a high moment of resistance with optimized material usage, which significantly lowers pure material costs.
High reusability: The Bohle’s robust construction minimizes wear during extraction, allowing the profiles to pay for themselves over many construction site cycles.
Logistical advantage: The compact ratio of wall height to weight reduces freight volume and saves money at transport and on construction site logistics.

Good for your planning

Calculable bearing capacity according to Eurocode 3: A plastic moment of resistance of 1,444 cm³/m provides structural engineers with reliable and high-load-bearing values for safe verification at the ultimate limit state.
Design Flexibility: The wall height of 320.0 mm enables a slender yet extremely rigid structure at demanding shoring projects in urban areas.
Sustainable Foundation: The high-quality steel used is 100 percent recyclable and meets all modern criteria for environmentally friendly and resource-efficient construction.

Our comprehensive service for your project

Flexible Procurement: Hire, buy, or choose customized buy/buyback options—tailored to your project budget.
Ready-to-Install Preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
Technical Consulting & Engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchor systems, right through to the appropriate driving and extracting equipment—ensuring everything fits together seamlessly on the site.
Efficiency makes the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economical nature.
