Sheet Pile TKL 603AN

Outstanding elastic moment of resistance at 1,200 cm³/m with a moderate dead load of just 107.0 kg/m² for maximum material efficiency.
Optimal structural performance thanks to a moment of inertia of 19,199 cm⁴/m, which provides reliable protection against deformation at medium to large depths.

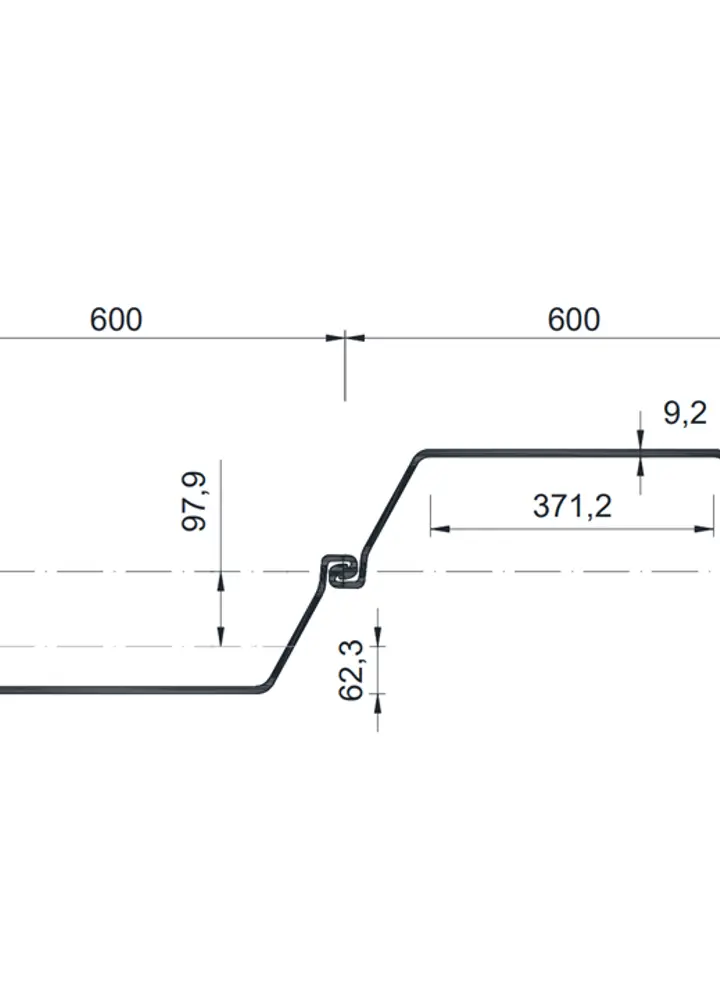

Proven Larssen-type U-profile with a wall height of 320 mm and a web thickness of 8.2 mm for extreme robustness during driving.

Product number: 52418

Stock availability:

Limited availability

Add to wish list

Product description

tkL 603AN Steel Sheet Pile – The Economical Powerhouse for Medium to Heavy Loads in Special Civil Engineering

The TKL 603AN provides a seamless transition between the lighter profiles of the 602 series and our classic tkL 603 model. With a flexural moment of 1,200 cm³/m at an optimized wall height of 320 mm, this Larssen-type sheet pile offers the perfect balance of high bearing capacity and minimal material usage. The profile confidently solves the problem of rising material costs while meeting high structural requirements in medium-duty (specialized) civil engineering. The proven U-profile achieves an optimal ratio of moment of resistance to dead load, making conventional designs pale in comparison in terms of economicalness.

Good for your site

Maximum driving stability thanks to the robust interlocking geometry, which enables reliable and true-to-path driving even in difficult soil conditions.
Excellent robustness of the individual sheet piles, which consistently minimizes deformation during driving or vibratory driving.
High system compatibility and reliable watertightness within the sheet pile wall, ensuring that construction progresses without unplanned delays.

Good for your budget

Optimized steel weight of 107.0 kg/m², which drastically lowers material costs compared to oversized profiles.
High reusability and exceptional durability of the Sheet piles, maximizing resale value or enabling cost-effective rental applications.
Significant logistical advantages due to the reduced transport weight per square meter of wall area, which allows for efficient use of freight costs and crane capacities.

Good for your planning

Predictable and fully certified bearing capacity according to Eurocode 3 for legally compliant and precise structural design.
High design flexibility thanks to a profile width of 600 mm, which integrates perfectly into existing design plans.
Focus on sustainability thanks to the steel’s full recyclability, which improves the environmental footprint of your entire building project.

Our comprehensive service for your project

Flexible procurement: Hire, purchase, or customized buy/buyback options—tailored to your project budget.
Ready-to-Install Preparation: We deliver the profiles in the correct length and, on request, pre-punched, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
Technical Consulting & Engineering: As a true system partner, we support you from the very first planning phase with preliminary structural calculations and customized solution concepts from our in-house engineering office.
Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchor systems, right through to the appropriate driving and extracting equipment—ensuring everything fits together seamlessly on the site.
Efficiency makes the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economical nature.
