Sheet Pile TKL 602A

Ideal ratio of bearing capacity to weight: 806 cm³/m elastic section modulus at a wall weight of just 85.5 kg/m².

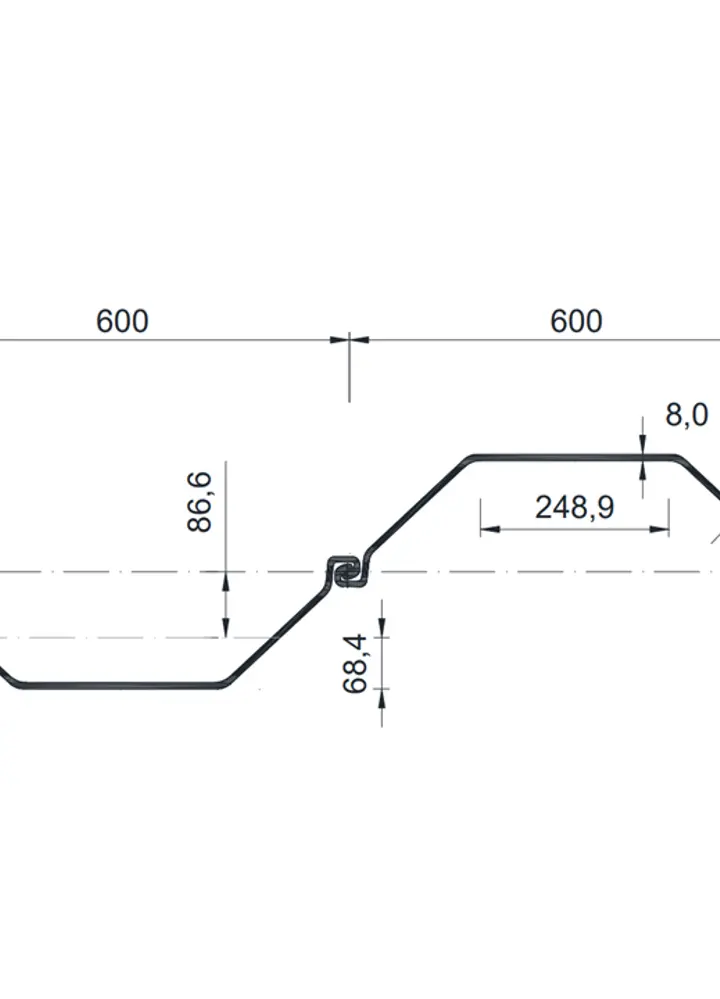

Compact and proven geometry: 600 mm profile width paired with a 310 mm wall height for efficient shoring in the tightest of spaces.
Robust Larssen lock: Maximum force transmission and excellent sealing properties for demanding civil engineering projects.

Product number: 52416

Stock availability:

Limited availability

Add to wish list

Product description

TKL 602A – The economical all-around sheet pile for medium loads and optimized excavation pits

The TKL 602A bridges the gap between the lightweight entry-level profiles and the heavier profiles in the mid-range series. With an elastic moment of resistance of 806 cm³/m, this Larsen-type sheet pile offers exactly the stability required for moderate to medium earth pressures at a wall height of 310 mm. Compared to the heavier profiles starting with the 603 row, you’ll save a significant amount of weight without compromising structural integrity. This makes this sheet pile the ideal choice for urban excavation sites and traditional sewer construction, where every millimeter and every euro counts.

Good for your site

Maximum driving stability thanks to an optimized web thickness of 7.3 mm, which consistently prevents premature buckling even at harder soil layers.
First-class interlocking geometry based on the proven Larssen profile, which guarantees smooth interlocking and drastically reduces installation effort.
High durability during driving using standard driving and vibration technology, which minimizes wear on the profiles and enables extremely fast cycle times.

Good for your budget

Optimized steel weight of 85.5 kg/m², which saves you money on material and transportation costs compared to the heavier sister model, the tkL 602.
High reusability and excellent recoverability of the formwork panel, making its use in temporary structures economically doubly worthwhile.
Significant logistical advantages thanks to the compact profile width of 600 mm, which allows for maximum load capacity per truckload and streamlines your construction site logistics.

Good for your planning

Bearing capacity calculable with pinpoint accuracy according to Eurocode 3 with a plastic moment of resistance of 979 cm³/m for uncompromising stability analyses.
Reliability thanks to guaranteed minimum thicknesses for the web (8.0 mm) and flange thickness, ensuring a durable, structurally sound design.
Full resource efficiency and sustainability through 100% recyclable structural steel that easily meets the environmental requirements of modern tenders.

Our comprehensive service for your project

Flexible procurement: Hire, buy, or choose customized buy/buyback options—tailored to your project budget.
Ready-to-install preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
Technical Consulting & Engineering: As a true system partner, we support you from the very first planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchor systems, right through to the appropriate driving and extracting equipment—ensuring everything fits together seamlessly on the site.
Efficiency makes the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economical nature.
