TKL 606AN – The High-Performance Heavyweight for Extreme Depths and Loads
When ground pressure rises dramatically and standard profiles reach their structural limits, the TKL 606AN ensures a secure retaining wall. With an enormous elastic moment of resistance of 2,355 cm³/m and a wall height of 432 mm, this profile is engineered specifically for the toughest applications in special civil engineering. As an extremely robust Larssen-type profile, it far surpasses the standard alternatives of the 603 or 604 series in terms of structural performance and confidently withstands immense earth pressure and water forces. These sheet piles offer the necessary rigidity to construct deep excavation pits as well as demanding quay structures or shoreline retaining walls in harbour constructions and hydraulic engineering with absolute safety and economicalness.
Good for your site
Good for your budget
Good for your planning
Our comprehensive service for your project
When ground pressure rises dramatically and standard profiles reach their structural limits, the TKL 606AN ensures a secure retaining wall. With an enormous elastic moment of resistance of 2,355 cm³/m and a wall height of 432 mm, this profile is engineered specifically for the toughest applications in special civil engineering. As an extremely robust Larssen-type profile, it far surpasses the standard alternatives of the 603 or 604 series in terms of structural performance and confidently withstands immense earth pressure and water forces. These sheet piles offer the necessary rigidity to construct deep excavation pits as well as demanding quay structures or shoreline retaining walls in harbour constructions and hydraulic engineering with absolute safety and economicalness.
Good for your site
- Maximum driving stability thanks to a back thickness of 14.4 mm and a web thickness of 9.4 mm, which consistently prevent splitting or deformation even in dense soil formations.
- Perfect Larssen interlocking geometry for smooth interlocking, ensuring continuous construction progress and minimizing the risk of interlock gaps when driving the sheet.
- High system compatibility and optimized robustness, allowing the wall to be installed precisely and with absolute watertightness even during heavy piling operations in pressurized (ground) water.
Good for your budget
- Optimal ratio between high bearing capacity and controlled steel weight, so that—compared to even heavier profiles like the 606 N—you achieve exactly the material efficiency that saves money.
- Extremely high reusability in temporary shoring, as the tough material of this proven tkL sheet pile can be reused multiple times without damage even after being pulled out.
- Logistical cost advantages during transport thanks to the optimized profile width of 600 mm, which allows for more wall meters per truckload and noticeably streamlines construction site logistics.
Good for your planning
- Reliable and crystal-clear bearing capacity in accordance with Eurocode 3, which ensures you full confidence and absolute planning certainty when performing structural analysis for extreme loads.
- Design flexibility thanks to the high moment of inertia of 50,878 cm⁴/m, which allows for larger clear spans and thus requires fewer intermediate bracing elements or anchor points.
- Sustainability through the complete recyclability of the structural steel, which effortlessly meets environmental requirements at public and private tenders.
Our comprehensive service for your project
- Flexible procurement: Hire, buy, or choose customized buy/buyback options—tailored to your project budget.
- Ready-to-Install Preparation: We deliver the profiles in the correct length and, on request, with pitching holes, with precision-cut sections, or with factory-installed Sealant to prevent water ingress.
- Technical Consulting & Engineering: As a true system partner, we support you from the initial planning phase with preliminary structural analyses and customized solution concepts from our in-house engineering office.
- Everything from a single source: We provide you with the complete package—from Sheet piles to matching corner sections, stiffeners, and anchor systems, right through to the appropriate driving and extracting equipment—ensuring everything fits together seamlessly on the site.
- Efficiency makes the difference: The efficiency achieved this way gives you a clear advantage in terms of your site’s economical nature.

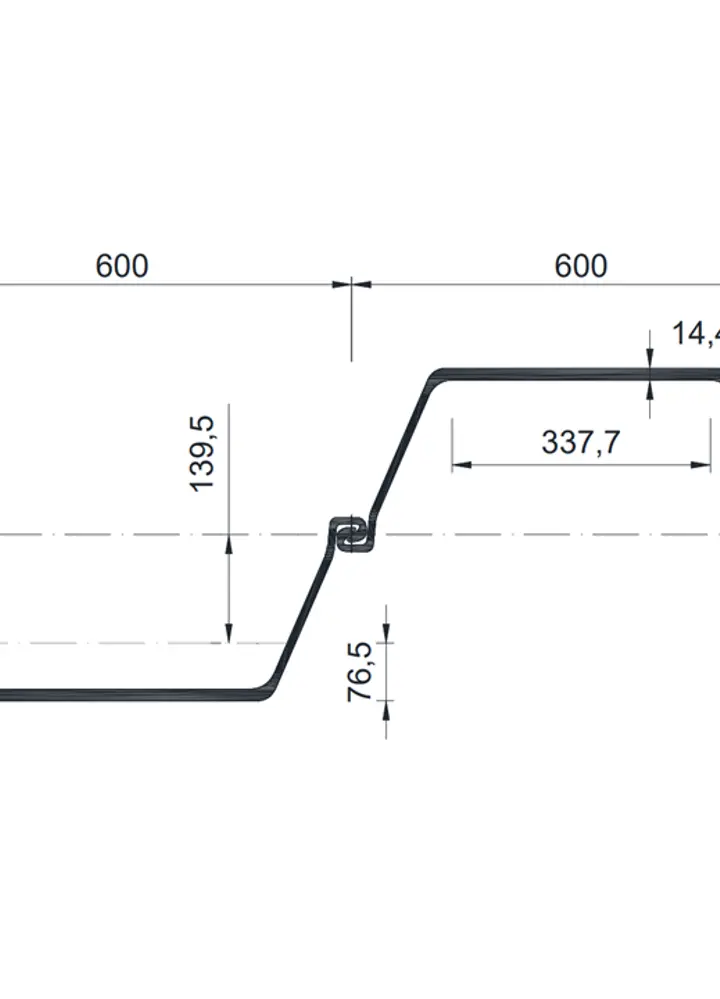

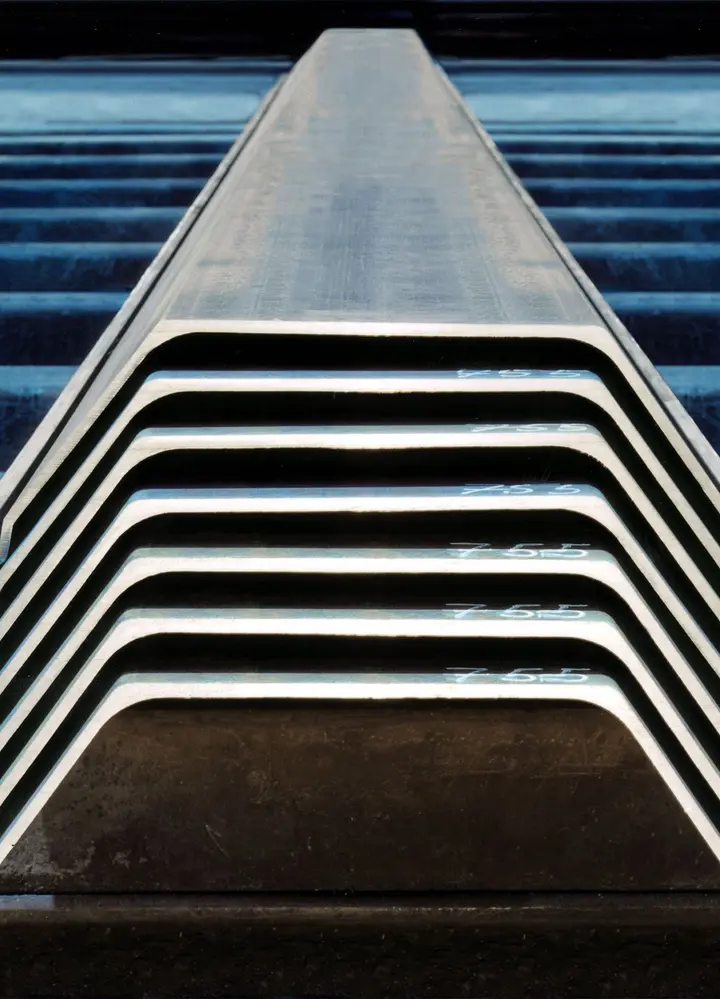

Specification
- Product number
- 32390
- Elastic section modulus [cm/m³]
- 2,355.00
- Weight [kg/m²]
- 149.60
- Momentum of inertia [cm⁴/m]
- 50,878.00
- Flange thickness [mm]
- 14.40
- Web thickness [mm]
- 9.40
- Height [mm]
- 432.00
