Product description

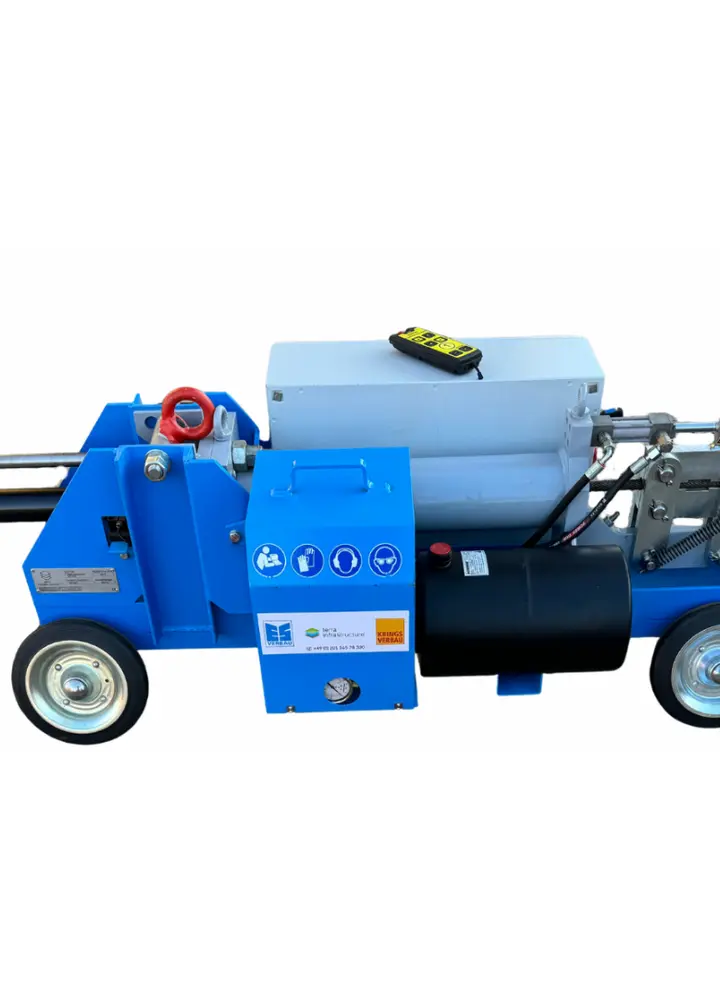

The SZ10-M pipe puller is used to pull together pipe segments in civil engineering. It can be used in pipes with diameters ranging from 800 to 2400 mm (also with deviating pipe diameters under certain circumstances). The pipe trolley is inserted into an already laid pipe segment and clamped there for this purpose. A steel pulling rope with tie beam is laid through the pipe segment to be pulled. The tie beam is attached to the end of the pipe segment to be pulled. An operator gives the tightening command by pressing a button on the remote control. The pulling force is provided by an electro-hydraulic pump with a hydraulic pulling cylinder.
Advantages
- Suitable for pipe diameters from 800 mm to 2400 mm
- Compact design
- No damage to pipe ends
- Suitable for:
- Standard pipe profiles
- Oval pipe profiles
- Rectangular pipe profiles
Key data
- Traction: 100 kN (note friction forces)
- Working travel (lift): 500 mm
- Pipe diameter: 800 - 2400 mm
- Cable: 35 m / 50 m
- Power supply (battery): 12 V / 170 Ah
- Working pressure: 160 bar
