Product description

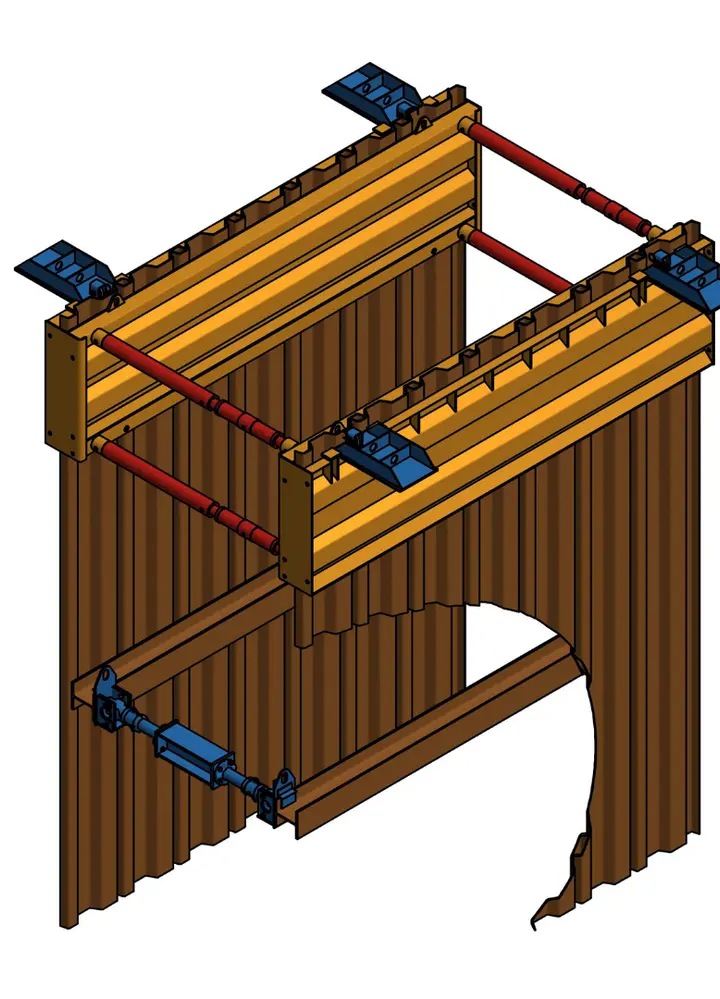

Piling frame elements are particularly well suited for use with crossing pipes. They serve as guide frames for the sheet piles and also form the top bracing layer.
The KRINGS DKU piling frame element is often used in combination with shoring boxes and is ideal for situations where a pipe crossing prevents the use of shoring boxes. KD VI/8 sheet piles are guided in the piling frame frame.
By attaching adapters to the sides, the DKU piling frame elements can also be used in E+S linear shoring.
The KRINGS DKU piling frame element is often used in combination with shoring boxes and is ideal for situations where a pipe crossing prevents the use of shoring boxes. KD VI/8 sheet piles are guided in the piling frame frame.
By attaching adapters to the sides, the DKU piling frame elements can also be used in E+S linear shoring.
Advantages
- Ideal for construction work with crossing pipes
- Low-settlement shoring in inner-city areas
- Spindles identical to those used with KRINGS boxes
- Suitable for corner shoring and in E+S linear shoring

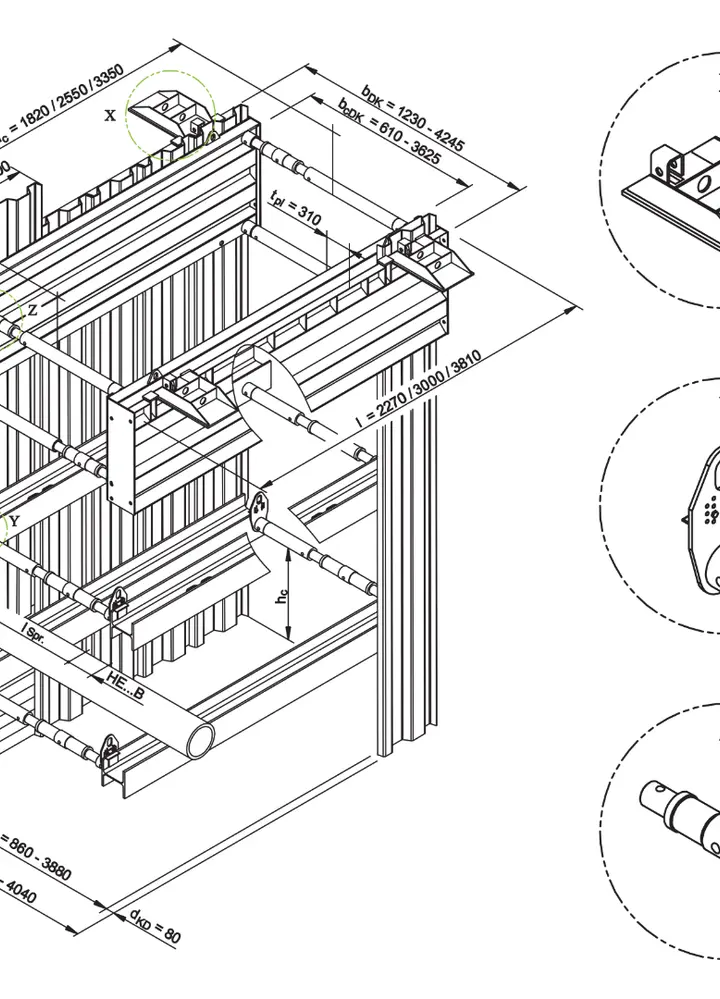

Key data
- Length: 3.00 m
- Height: 1.00 m
- Pipe clearance length: 2.55 m
- Spindle: SP 98x550
- Piling frame clear width: 0.61 - 3.31 m
- without extension bar: 0.61 - 0.81 m
- with extension bar:
- l=0.30 m: 0.91 - 1.11 m
- l=0.50 m: 1.11 - 1.31 m
- l=1.00 m: 1.61 - 1.81 m
- l=1.50 m: 2.11 - 2.31 m
- l=2.00 m: 2.61 - 2.81 m
- l=2.50 m: 3.11 - 3.31 m
- Sheet pile clear width: 0.86 - 3.56 m
- without extension bar: 0.86 - 1.06 m
- with extension bar:
- l=0.30 m: 1.16 - 1.36 m
- l=0.50 m: 1.36 - 1.56 m
- l=1.00 m: 1.86 - 2.06 m
- l=1.50 m: 2.36 - 2.56 m
- l=2.00 m: 2.86 - 3.06 m
- l=2.50 m: 3.36 - 3.56 m
- Sheet piles: KD VI/8
Recommended excavator:
- Mobile or crawler excavator 12-18 t
