Product description
Piling frame elements are particularly well suited for use with crossing pipes. They serve as guide frames for the sheet piles and also form the top bracing layer.

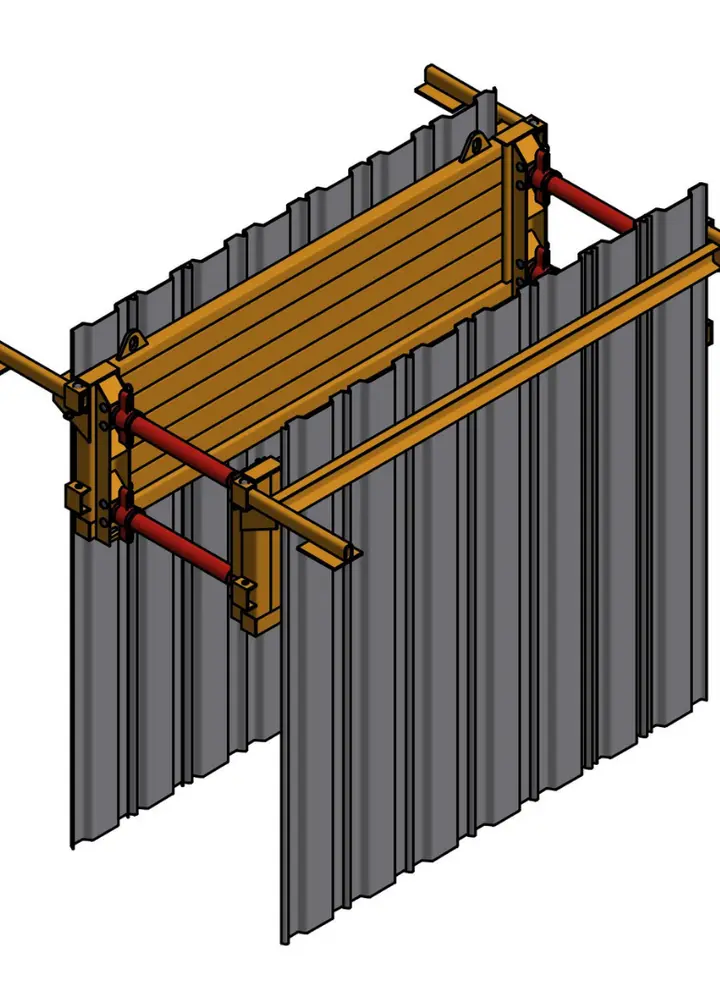

The KRINGS BLU piling frame element is a practical addition to the lightweight shoring boxes, especially when shoring boxes cannot be used due to pipe crossings. In this case, the trench walls are secured using KD IV/6 or CR435 sheet piles. The BLU is supported by KRINGS KVL spindles (70×650 to 70×1470).
The KRINGS BLU piling frame element is a practical addition to the lightweight shoring boxes, especially when shoring boxes cannot be used due to pipe crossings. In this case, the trench walls are secured using KD IV/6 or CR435 sheet piles. The BLU is supported by KRINGS KVL spindles (70×650 to 70×1470).
Advantages
- Low weight
- For small to medium-sized construction projects
- Ideal for handling with small wheeled excavators
- Compact design for inner-city areas with crossing pipes
- Support brackets can be used in two positions

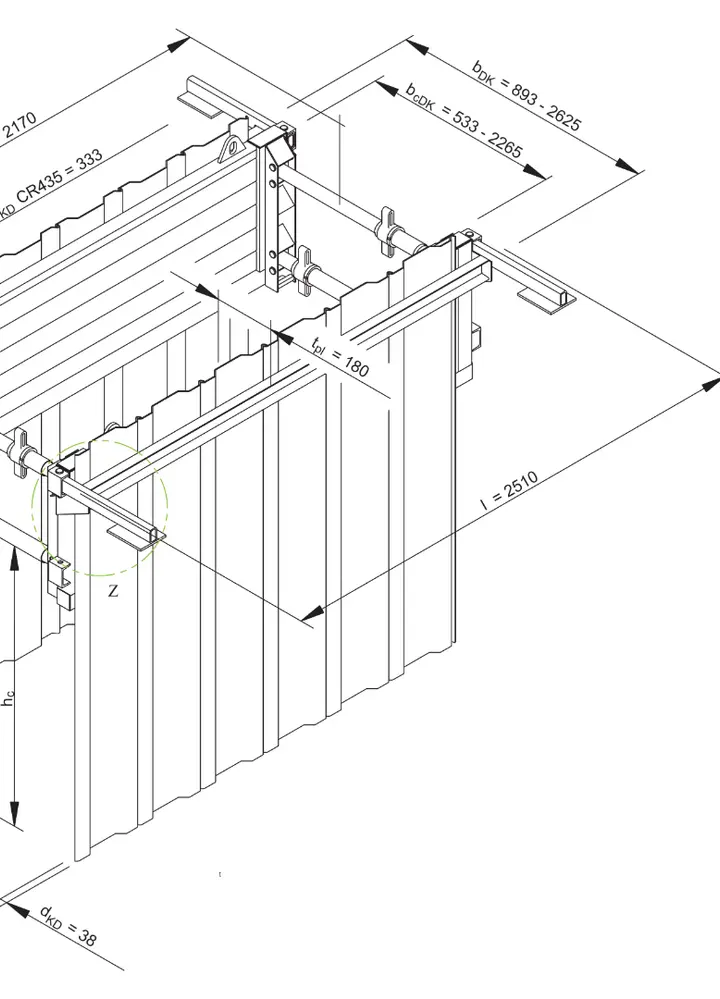

Key data
- Length: 2.41 m
- Height: 0.72 m
- Pipe clearance length: 2.17 m
- Piling frame clear width: 0.53 - 0.63 m
- Sheet pile clear width: 0.70 - 0.79 m
- Sheet piles: CR 435
Recommended excavator:
- mobile excavator 9-13 t
