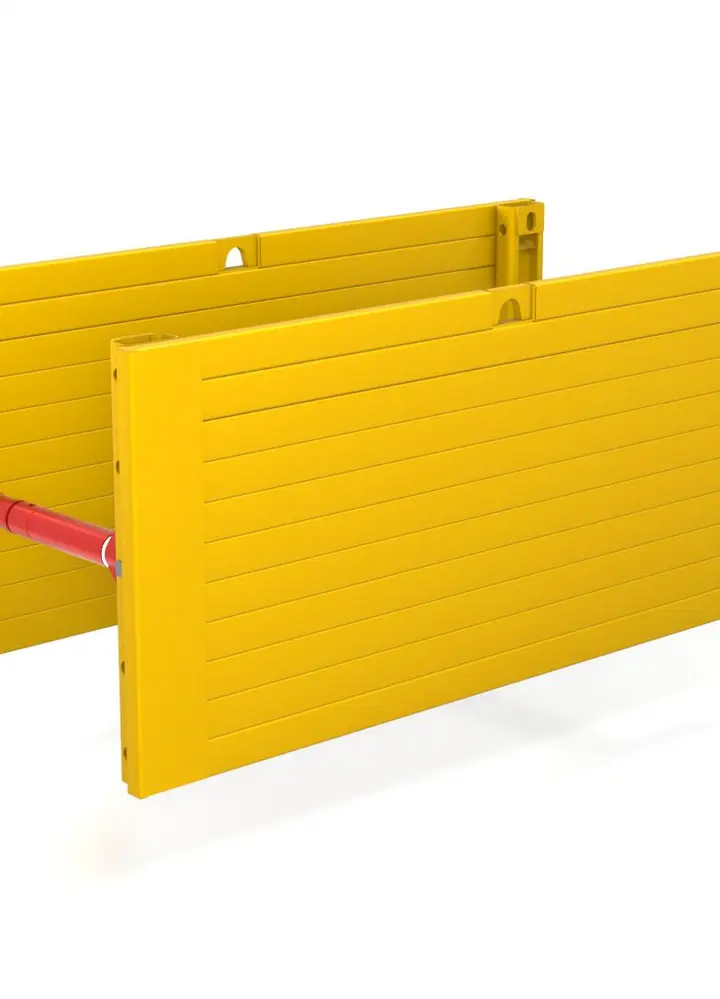

Product description

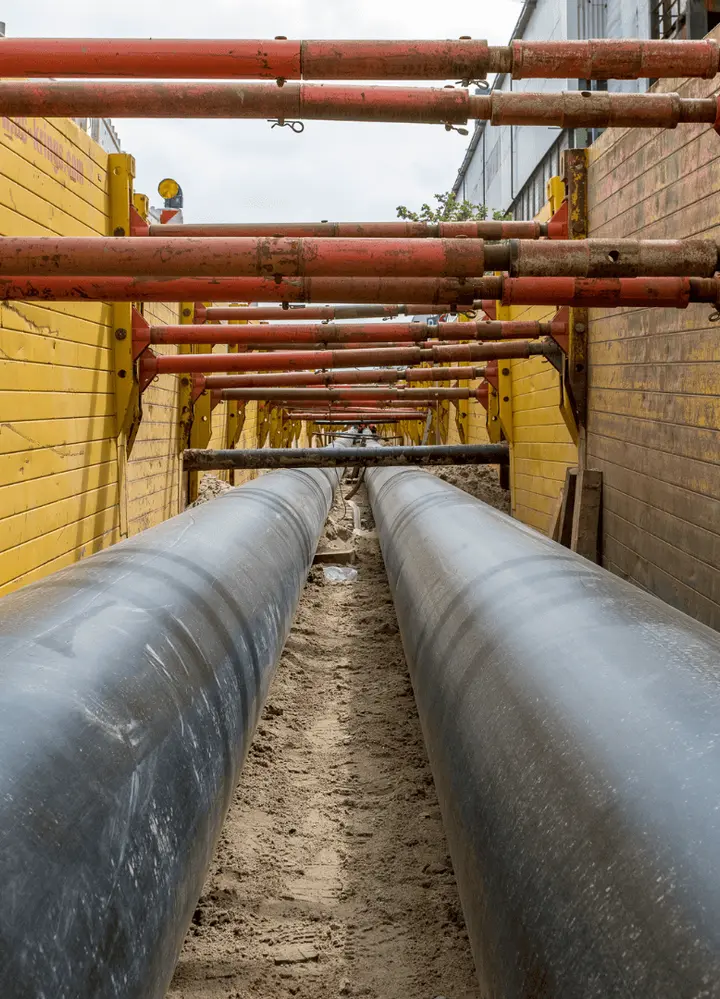

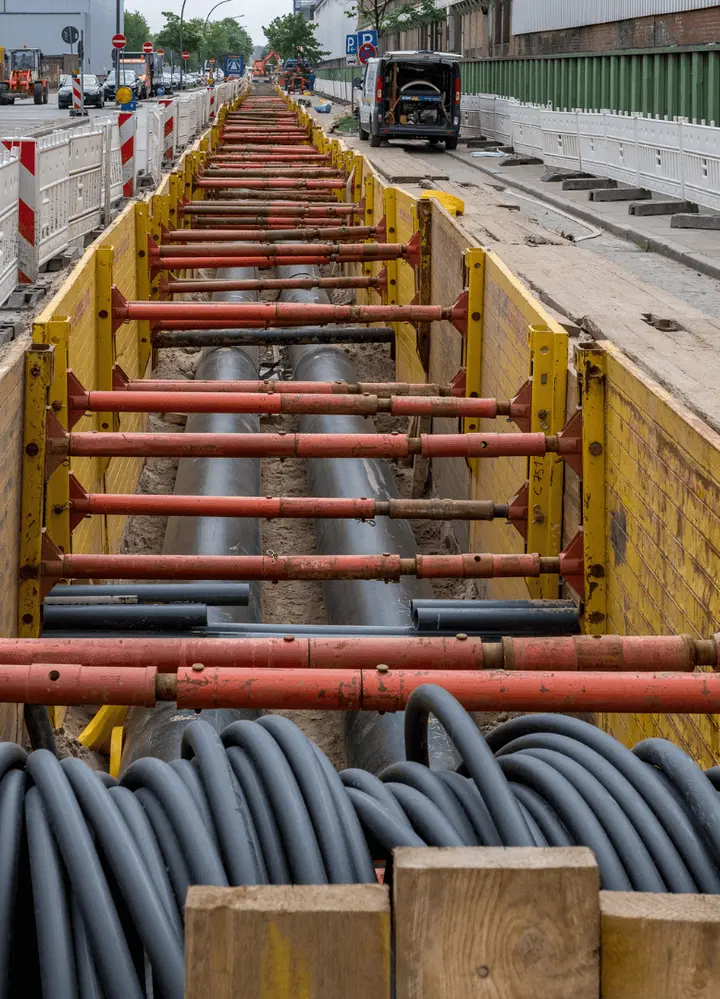

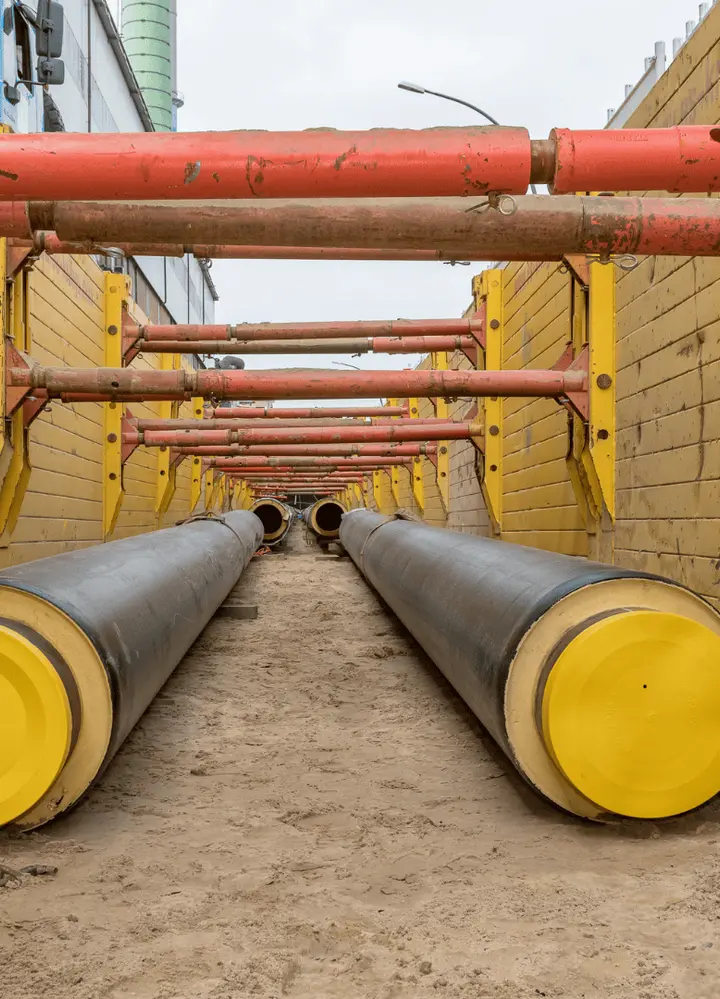

The KRINGS KS 60 trench box combines the advantages of a lightweight plate construction with those a flexible strut. This allows the box to be installed using the lowering method, even in unstable soil. The shoring box is typically used on medium-sized inner-city sewer construction sites. Thanks to its low weight, installation and removal can also be carried out efficiently with smaller excavators.
Advantages
- For open terrain and medium-sized inner-city sewer construction projects
- Shoring spindles compatible with KS 100 boxes
- Installation and removal possible with smaller excavators
- Low weight, high load capacity
- Installation using the adjustment and lowering method

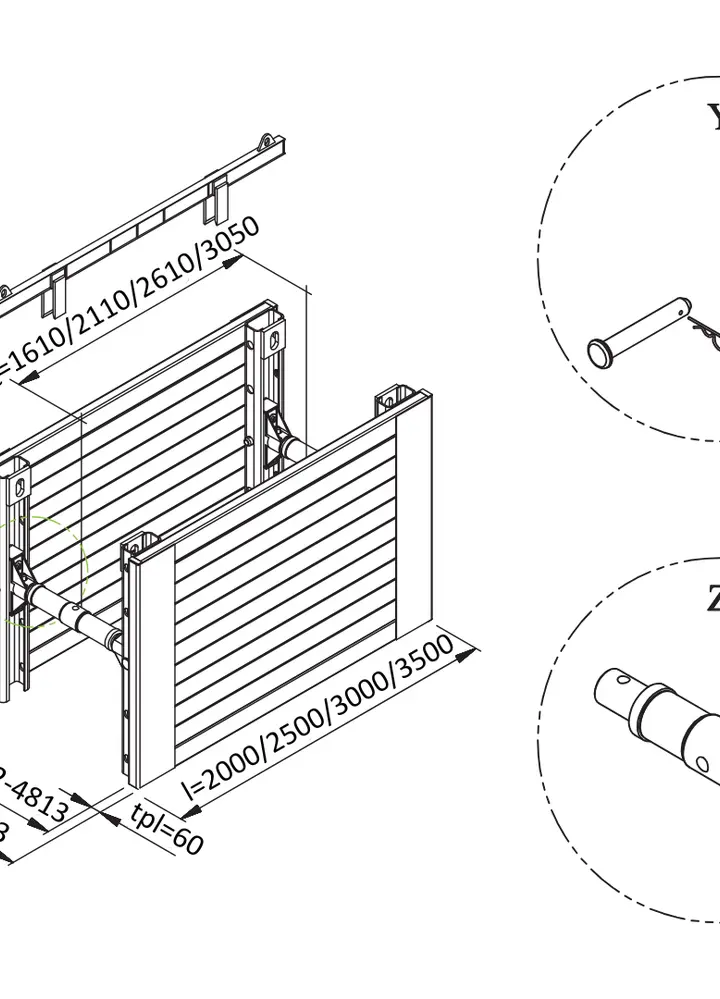

Key data
- Length: 3.50 m
- Height: 1.30 m
- Panel thickness: 60 mm
- Pipe culvert height: -
- Pipe clearance length: 3.05 m
- Clear width: 0.99 - 3.83 m
- without extension bar: 0.99 - 1.33 m
- with extension bar:
- l=0.30 m: 1.29 - 1.63 m
- l=0.50 m: 1.49 - 1.83 m
- l=1.00 m: 1.99 - 2.33 m
- l=1.50 m: 2.49 - 2.83 m
- l=2.00 m: 2.99 - 3.33 m
- l=2.50 m: 3.49 - 3.83 m
- Surface area: 4.55 m2
Recommended excavator:
- base box only: mobile or crawler excavator 12-18 t
- with top box: mobile or crawler excavator 18-30
