Product description

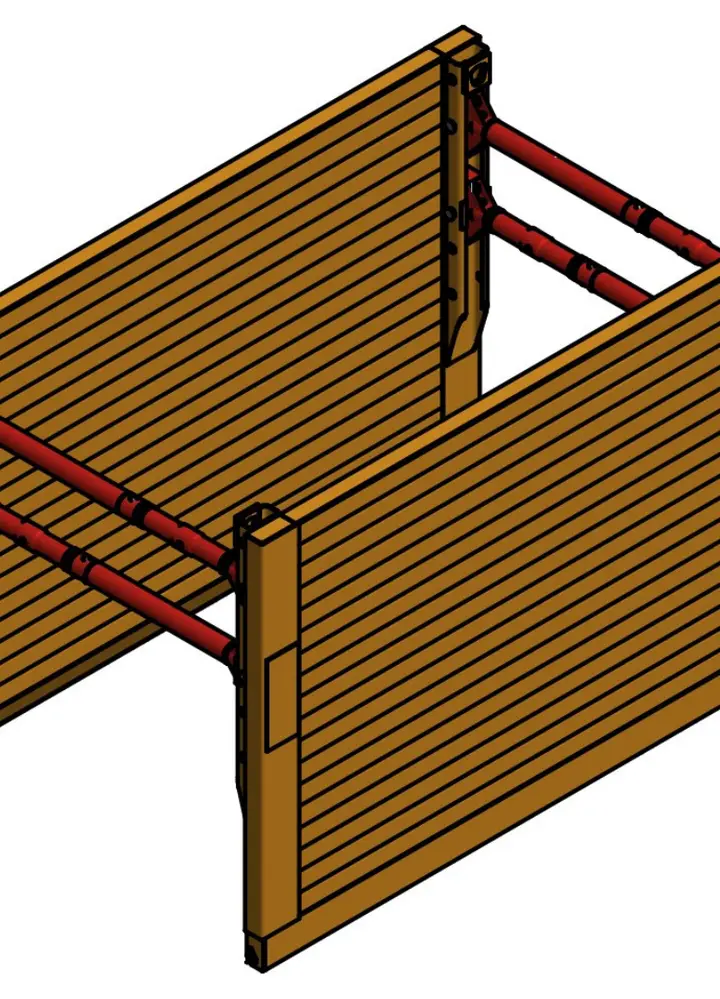

The KRINGS KS 100 trench box is suitable for a wide range of shoring applications. Its robust plate design combined with the powerful KRINGS strut makes the KS 100 an extremely popular and frequently used shoring box. It is mainly used in sewer construction at depths of up to 4 m. Thanks to the flexible strut, the box can be easily installed using both the adjustment and lowering methods.
Advantages
- Wide range of applications
- Fast and easy installation
- Shoring struts compatible with KS 60 boxes
- Installation using the adjustment and lowering method
- One of the most widely used shoring boxes in the world

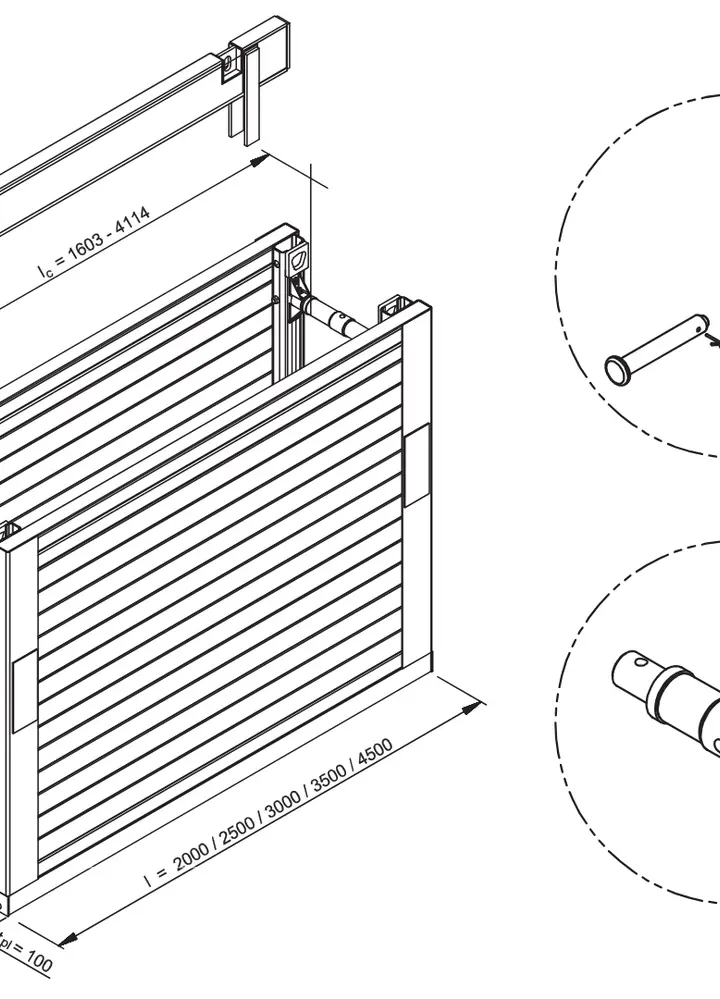

Key data
- Length: 2.50 m
- Height: 2.60 m
- Panel thickness: 100 mm
- Pipe culvert height: 1.56 m
- Pipe clearance length: 2.11 m
- Clear width: 0.99 - 3.83 m
- without extension bar: 0.99 - 1.33 m
- with extension bar:
- l=0.30 m: 1.29 - 1.63 m
- l=0.50 m: 1.49 - 1.83 m
- l=1.00 m: 1.99 - 2.33 m
- l=1.50 m: 2.49 - 2.83 m
- l=2.00 m: 2.99 - 3.33 m
- l=2.50 m: 3.49 - 3.83 m
- Surface area: 6.50 m2
Recommended excavator:
- base box only: mobile or crawler excavator 12-18 t
- with top box: mobile or crawler excavator 18-30 t
