Description
KRINGS Flex Shoring is the ecologically advantageous alternative to lightweight shoring. It is ideal for laying gas and water pipes and other house connections up to depths of approx. 2.00 m and pipe clearance heights of up to 0.60 m. The shoring can be adapted to different pipe clearance heights using basic and additional elements.

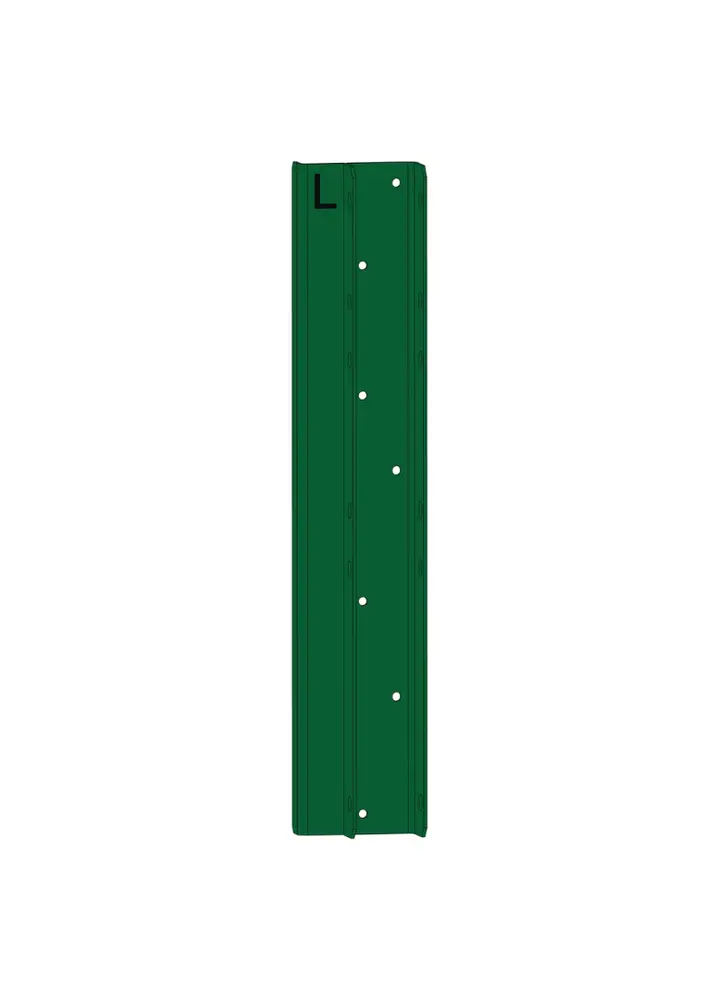

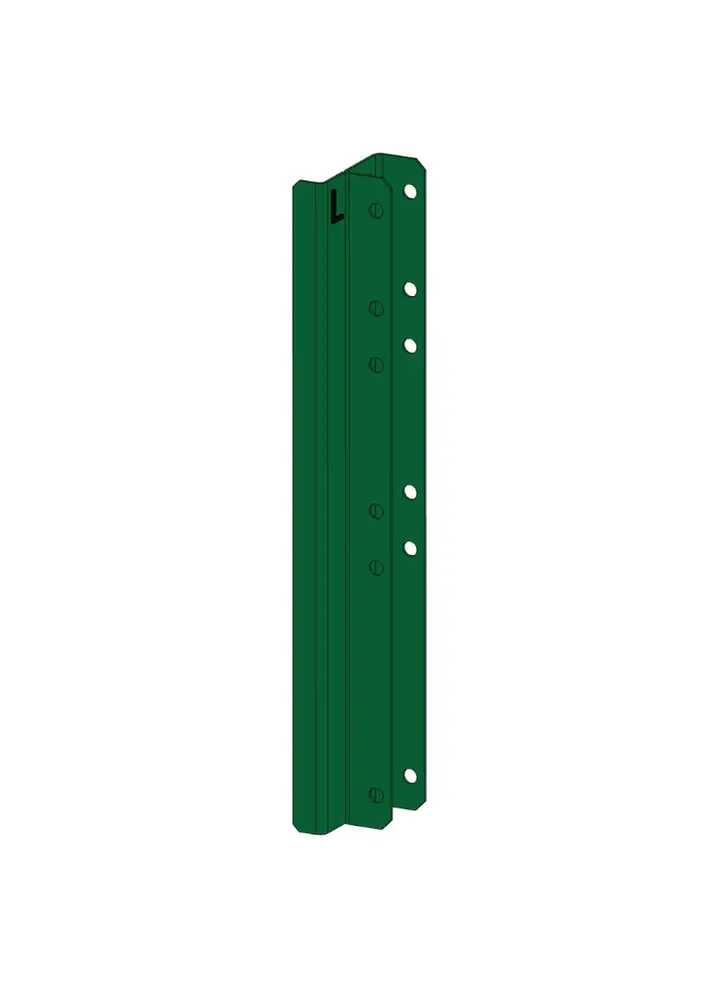

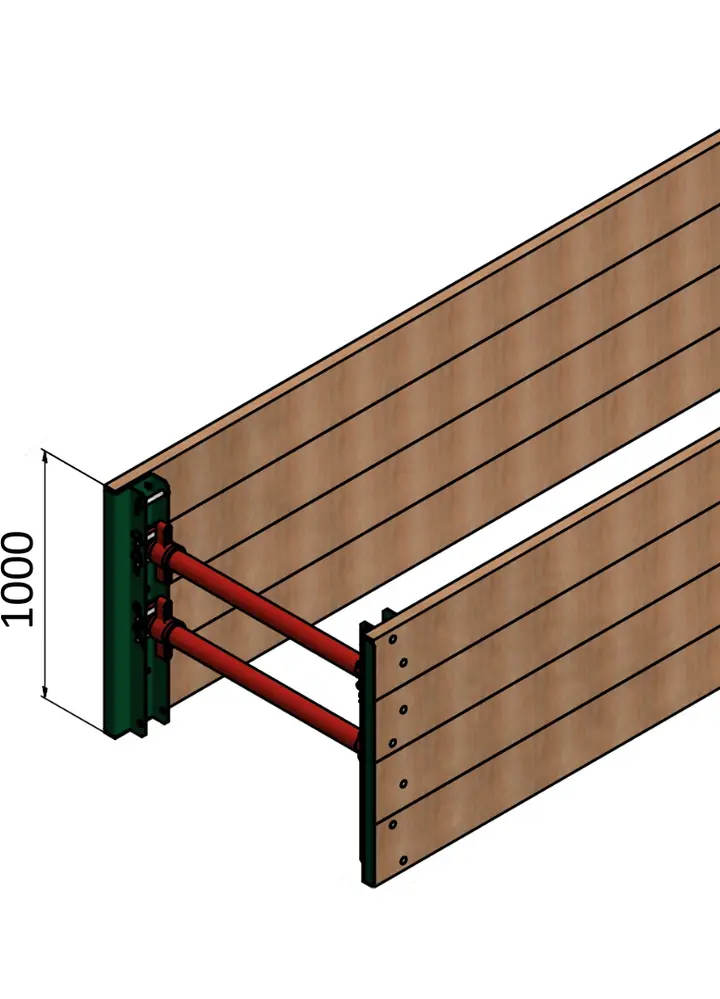

The 1.00 m high KRINGS Flex Shoring basic traverse allows you to assemble a 1.00 m high Flex Shoring unit.
Wooden planks with a height of 0.25 m and lengths ranging from 2.00 m to 3.00 m, as well as M10 flat round head screws and M10 nuts, must be provided by the client.
The lightweight shoring struts from the KRINGS KVL-Box are used as the spindle system. These are attached to the traverse or coupling with 125xØ20 mm bolts and then secured with safety clips.
Seven flat round head screws are required for each basic traverse.
The 1.00 m high KRINGS Flex Shoring basic traverse allows you to assemble a 1.00 m high Flex Shoring unit.
Wooden planks with a height of 0.25 m and lengths ranging from 2.00 m to 3.00 m, as well as M10 flat round head screws and M10 nuts, must be provided by the client.
The lightweight shoring struts from the KRINGS KVL-Box are used as the spindle system. These are attached to the traverse or coupling with 125xØ20 mm bolts and then secured with safety clips.
Seven flat round head screws are required for each basic traverse.
Key data
- Height: 1.00 m
- Bolts and safety clips per traverse: 5
- Flat-head screws and nuts per traverse: 7
Specification
- Product number
- 888410
- Weight
- 18.6 kg
