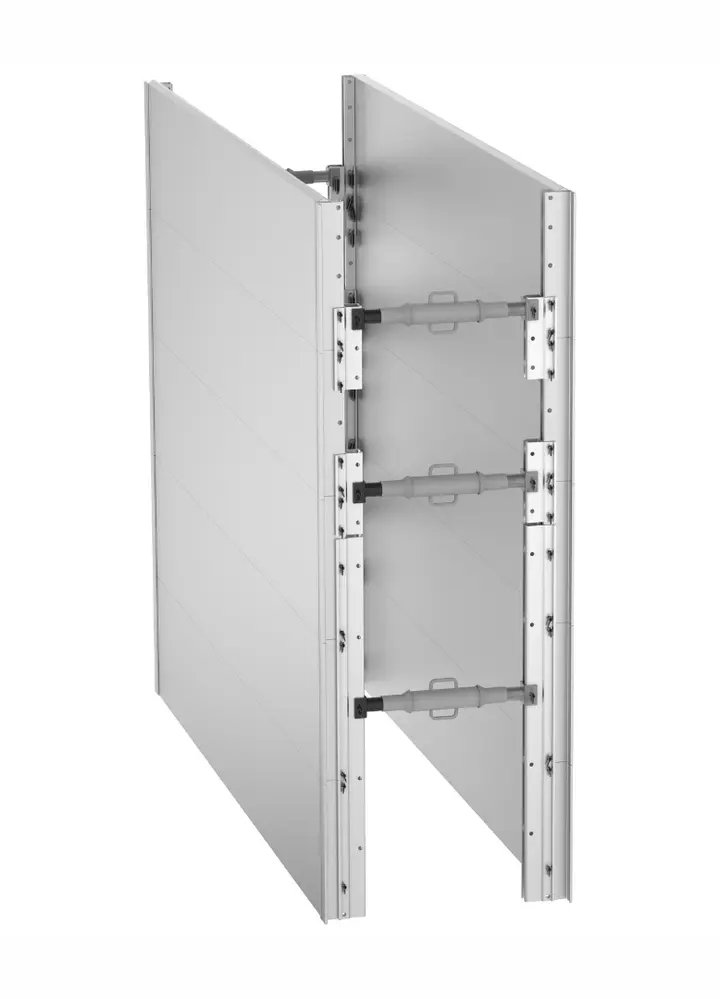

Product description
The aluminium lightweight shoring is a system designed for use in urban trenches, for service connections to buildings and maintenance work. This modular system, made of aluminium, is a useful addition to steel shoring and timber plank shoring.
Depending on the intended use, the modular system can be flexibly configured and expanded. By using a small number of standardized basic elements, all common trench widths and depths can be reliably accommodated.
Depending on the intended use, the modular system can be flexibly configured and expanded. By using a small number of standardized basic elements, all common trench widths and depths can be reliably accommodated.
Advantages
- Modular system
- Sides fully supported
- For soils that are stable for short periods
- Fast and easy installation
- Can be installed by two persons without plant

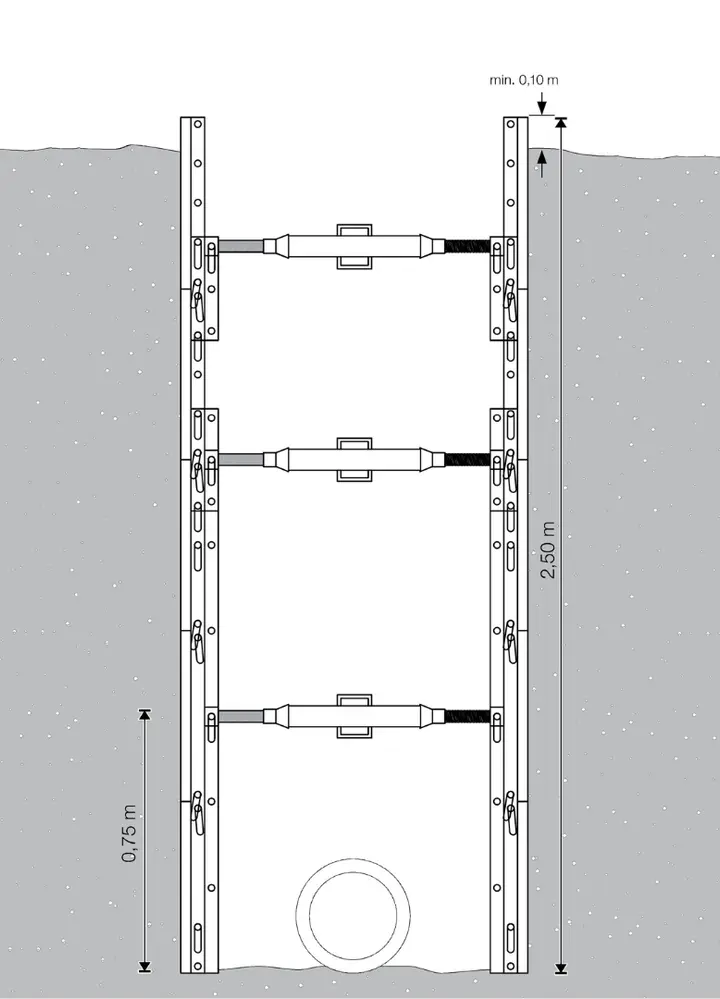

Key data
- Length: 3.00 m
- Height: 2.50 m
- Panel thickness: 50 mm
- Pipe culvert height: -
- Pipe culvert length: 2.80 m
- Clear width: 0.50 - 0.71 m
- Surface area: 7.50 m2
Recommended excavator:
- Mini excavator 3-9 t
