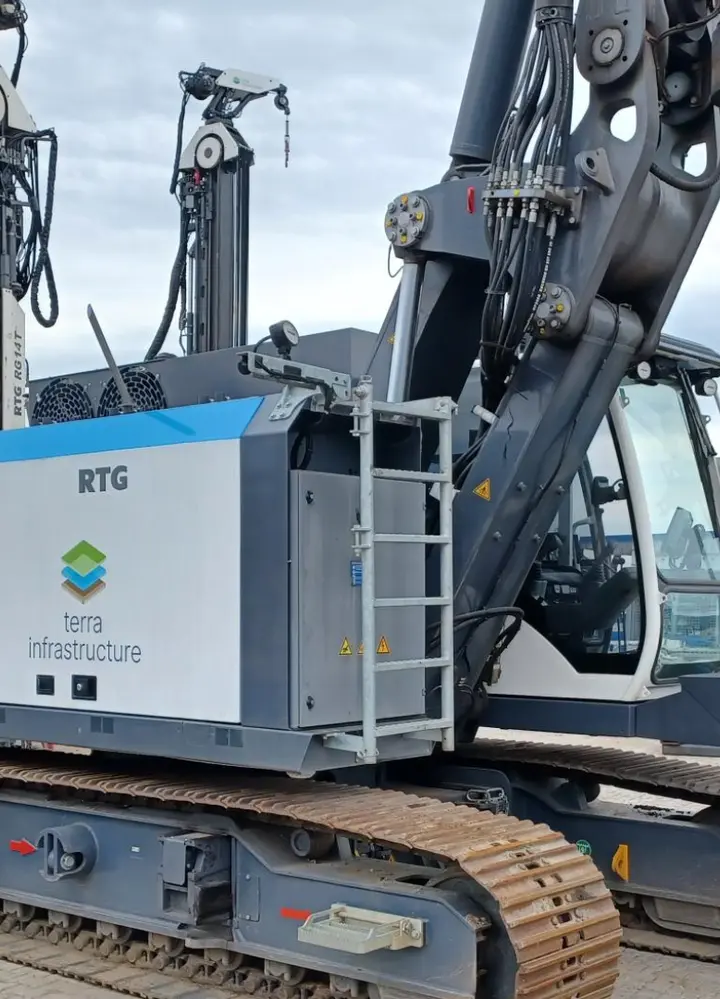

RTG piling rig RG16T year of manufacturing 2021; 904 hours

Output: 370/430 kW
Max. pile length: 16 m
Max. tension force: 200 kN
Max. torque: 50 kNm
Last inspection: January 2, 2025
Emission class 5 / Tier IV final
Engine: C 13 B (Caterpillar)
Motor capacity: 430 kW (585 hp)
Country of manufacture: Germany
CE certificate

Transport dimensions:
Width: 3.00 m
Height: 3.30 m
Length without winch: 10.30 m
Length including winch: 11.60 m
Weight (without counterweight and winch): 40.30 t
Weight of winch: 0.80 t
Weight of counterweight: 4.10 t
Additional counterweight (optional): 2.00 t

Additional information
RG16T on BS 55 RS
Carrier crane BS 55 RS

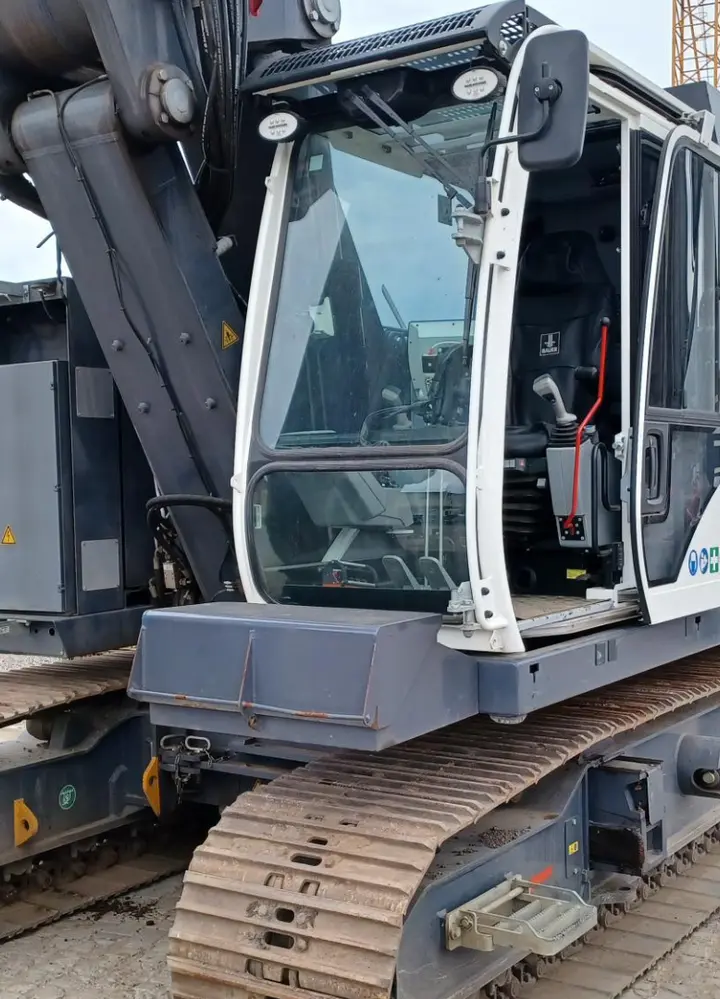

Comfort operator cab

• DAB+ radio with Bluetooth
• Automatic climate control
• Tinted roof and side windows
• Sliding door with integrated sliding window
• Roof protection grille
• Premium driver's seat

Centralized lubrication
Toolbox in front of the operator cab
Counterweight package 4.1 t
Counterweight package 1.9 t
Counterweight console
LED working lights

• 4 LED working lights

Reversing camera uppercarriage

• For the right side and the back

Basic remote control

• For driving the machine in transport mode
• Telescoping the chassis
• Operation of additional equipment functions

Radio control for worldwide use, comprising

• Transmitter
• Receiver with antenna
• Two storage batteries
• Two chargers (DC and AC)
• Waist belt
• 10 m cable for emergency operation
• Lockable storage box

B-Tronic RG - Basic module
Additional device depth measurement
Fast advance for crowd cylinder in MR operation

• Increase in feed speed when pulling up the pile

B-Tronic ART module with recording
1DTR module
The DTR module serves as a hardware communication platform for the transmission of production and device data

• to a password-protected Internet web server and
• within a local WLAN hotspot (on the site)

“Basic” report - for the visualization of production data
ACS-1 mounting kit for guide slide
Mounted on the machine side, comprising

• Multiple coupling block nut part
• Attachment bracket for alignment of the multiple coupling block

Hydraulic oil filling Panolin HLP Synth 46
Fine filter with water separator – for additional filtering of the hydraulic oil
Preparation for energy efficiency package (EEP)
Energy efficiency package (EEP)
Fall protection - rail on uppercarriage
Undercarriage Tele 27/330
3-web base plates 700 mm

• Base plate width 700 mm
• Suitable for UW Tele 27/330

Telescopic jib attachment RG 16 T

• Lift of rotary sledge 13.0 m
• Lift of rotary sledge displacement cylinder 3.0 m
• Total lift, 16.0 m
• Max. torque leaders 50 kNm
• Swivel range leaders +/- 100 degrees

Auxiliary winch 6 tons rotatable and adjustable

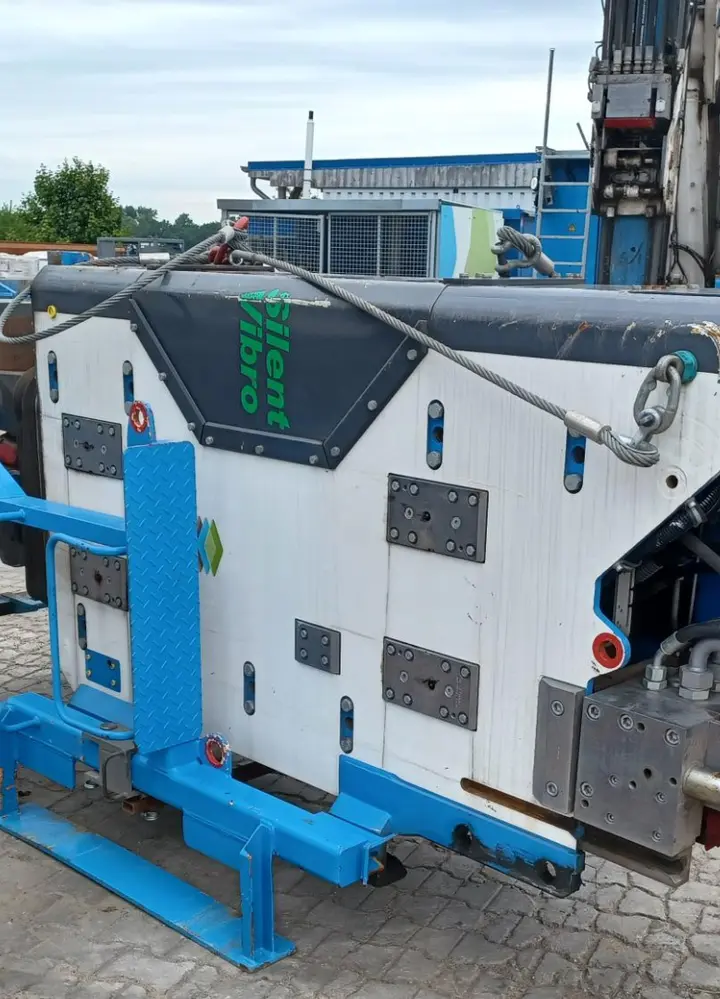

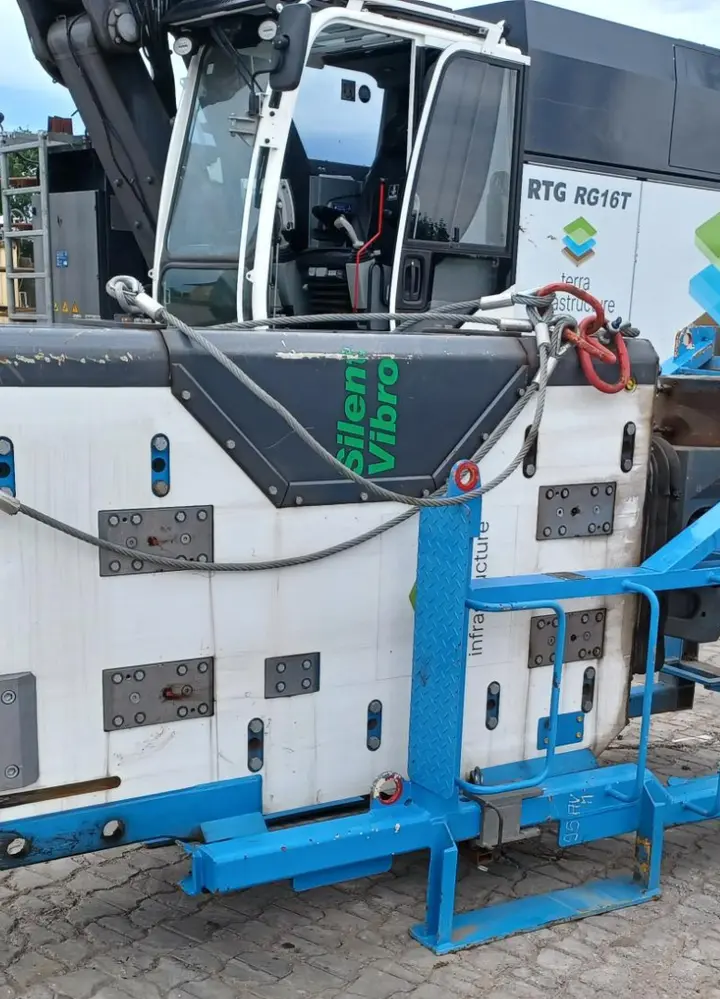

SilentVibro package
Centralized lubrication MR
Pre-equipment MR 75 V
Pre-equipment MR 85 AVM
Pre-equipment MR 95 AVM

WEB-BGM access package “Advanced”*, functions:

• Query of operating times, fuel consumption
• Location query
• Online indication / display of the driver's screen (live)
• Online indication / display of engine and equipment data (live)
• Indication and evaluation options for messages (including e-mail function)
• Query of maintenance/service information
• User administration for creating your own users

*optionally available for booking

WEB-BGM access package “Basic”*, functions:

• Query of operating times, fuel consumption
• Location query
• User administration for creating your own users

*included
